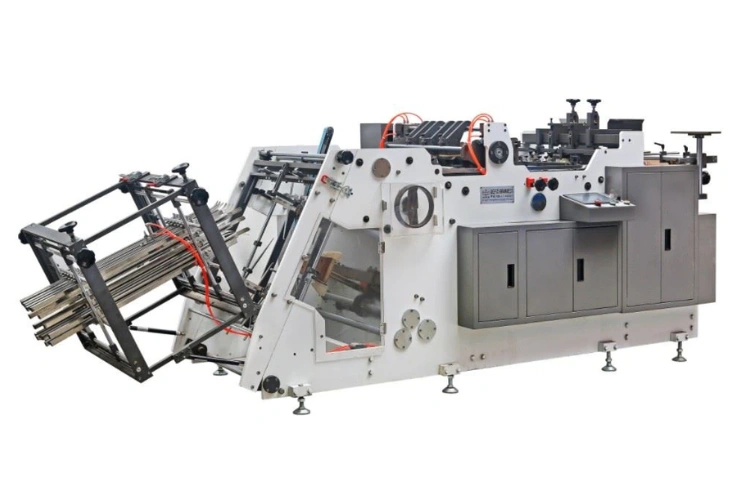

Paper Box Forming Machine

New-generation three-dimensional box machine is molding equipment specialized in producing various paper products,which can produce hamburger box,square box,food box(portable outside),and other boxes madeby paperboard and corrugated paper.

1. INTRODUCTION:

New-generation three-dimensional box machine is molding equipment specialized in producing various paper products,which can produce hamburger box,square box,food box(portable outside),and other boxes madeby paperboard and corrugated paper.

2.CHARACTERS:

  • The characteristics of a new generation of 3 d carton machine has stable quality, high efficiency, top speed of 160 PCS/MIN.
  • The versatility, can be on the same machine, only need to change the moulds can make different sizes of boxes, boxes, hamburger boxes, chip boxes, and other products.
  • The machine use water-based adhesive glue device, can achieve high efficiency, high accuracy.Water-based glue is a water-soluble adhesive for food-grade use glue (high security).
  • Most of the machine adopt sealed bearings with high quality, long life and good stability.
  • The machine adopts PLC intelligent control system. Replace with pine 6. The main mold material, mold with high efficiency.

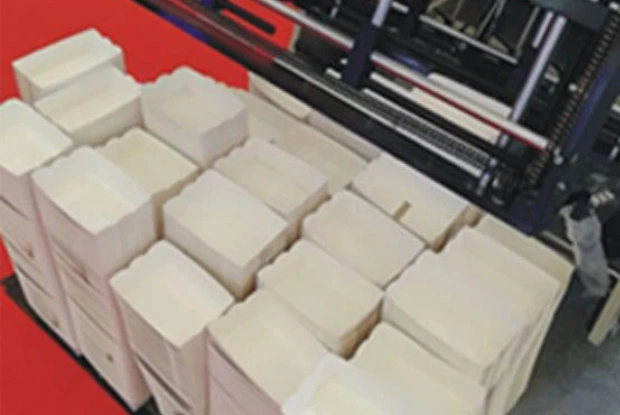

  • Can automatically collect accumulation, counting the finished product.
  • Are all made of high quality chain drive, almost no error in the process of the machine running.

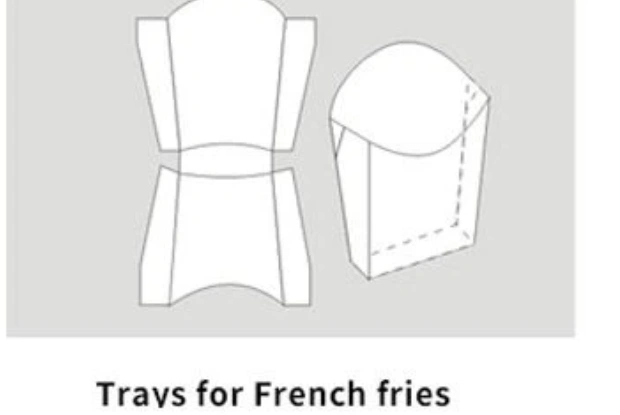

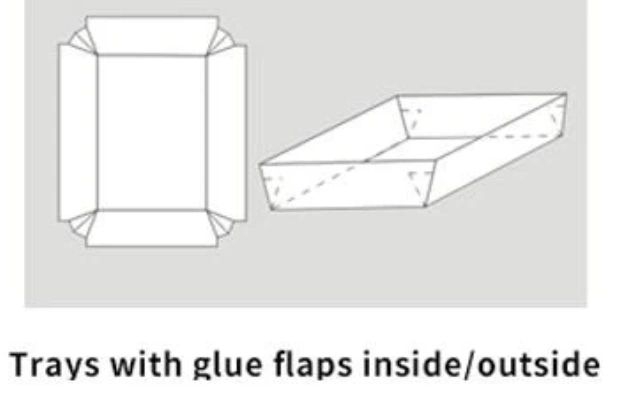

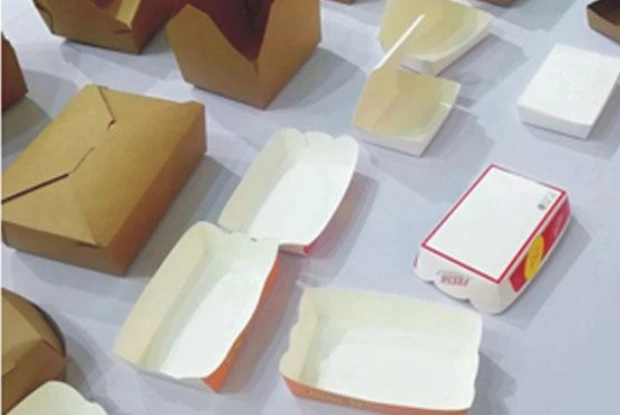

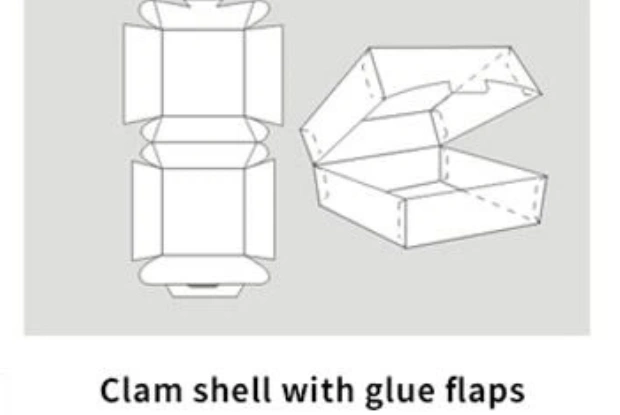

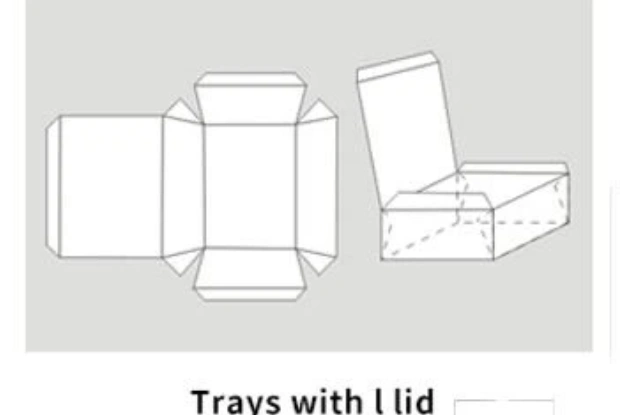

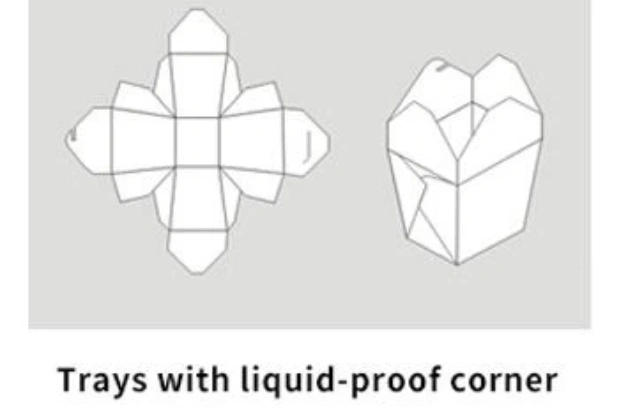

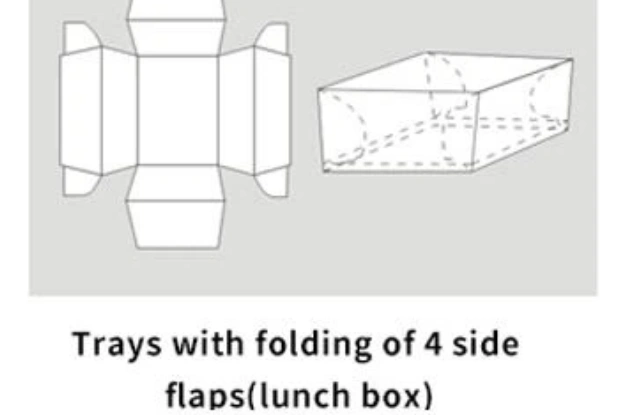

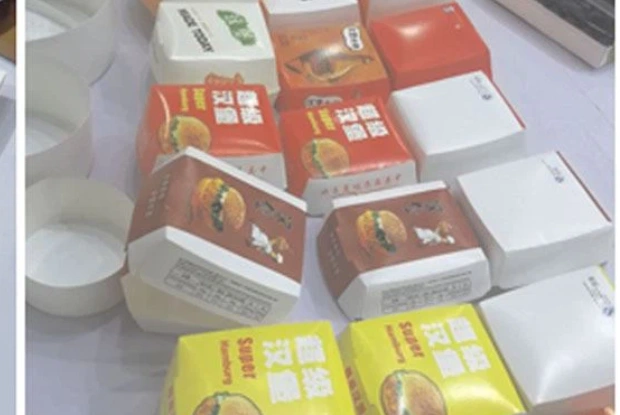

4.Samples:

5. Main technical parameter:

Model ZF800
Paper Standard 150*150 - 500*380 (MM)
Raw Materials for Paper Automatic continuous feeding
Max Mechanical Speed 200-600g/m²
Paper Thickness Max Thickness: 1.5mm
Speed 30 - 160 pieces/min
Send Paper Max Width 550mm
General Motors 4KW
Weight 1800KG
Machine Size 3500*1200*1600mm

6.Machine configuration

Linear Guideway Taiwan HIWIN
Taiwan HIWIN USA
Solenoid Valve SIEMENS
Low-voltage Apparatus SIEMENS
The Inverter SIEMENS
Time Relay SIEMENS
PLC mcgsTpc
Touch Screen Taiwan HIWIN
Linear Guideway USA
Linear Guideway Taiwan HIWIN
Linear Guideway Taiwan Air TAC
Solenoid Valve EVER-POWER (EP)
