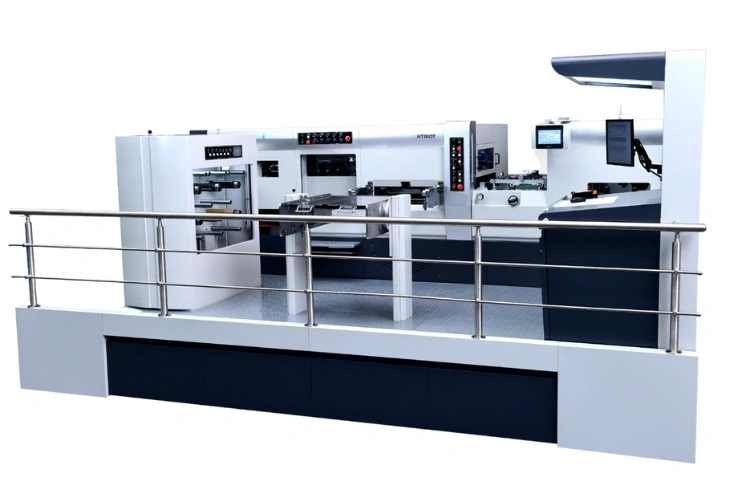

HT810T Excellent Heavy-duty Foil Stamping Machine in Chennai

We are the best HT810T Excellent Heavy-duty Foil Stamping Machine Manufacturers in Chennai. For Hang tag, trademark, carton box, handbag and other fine printing product foil stamp, die cut, crease, hot and cold emboss. Standard vertical three-axis hot stamping. Six-axis stamping and hologram is option.

This is a high-performance equipment with better performance to meet customers’ requirements for higher product quality and higher productivity.

Mitsubishi and Panasonic PLC and 9 sets of Yaskawa servo motor from Japan.

Paper slows down when approachs front layer to ensure stamping accurate.

A blowing foil separation device used for large area foil stamping.

  • Excellent productivity
  • Foil re-winder is option
  • Hologram is option
  • 6 shafts is option
  • HIGHEST FOIL STAMPING SPEED: 9000s/h

Specification

Max. Paper Size 810 x 610 mm
Min. Paper Size 320 x 260 mm
Max. Cutting Size 800 x 600 mm
Max. Foil Stamping Size 780 x 580 mm
Max. Cutting Speed 9000 s/h
Max. Foil Stamping Speed 9000 s/h
Max. Hologram Speed (Option) 7500 s/h
Max. Pressure 500 T
Foil Stamping and Die-cutting Precision ±0.075 mm
Inside Chase Size 815 x 620 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 12 mm
Min. Gripper Margin 7 mm
Heating Zone 10 zones
Heating Temperature 0 ~ 190°C
Max. Feeding Pile Height (incl. pallet) 1480 mm
Max. Delivery Pile Height (incl. pallet) 1360 mm
Thickness of Cardboard 80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper ≤ 4 mm
Feeding Shafts 3/6 (Option)
Weight 13 T
Total Power 45 KW

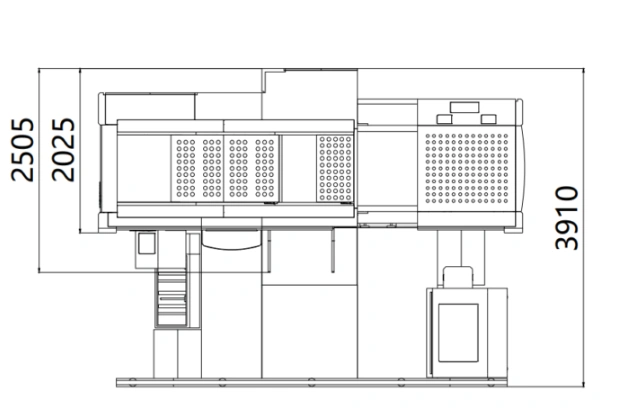

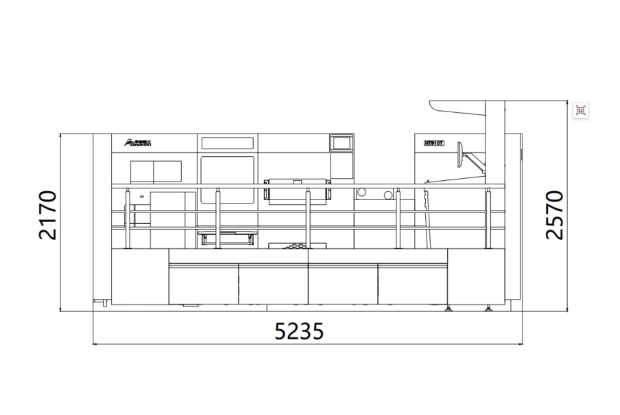

Layout
