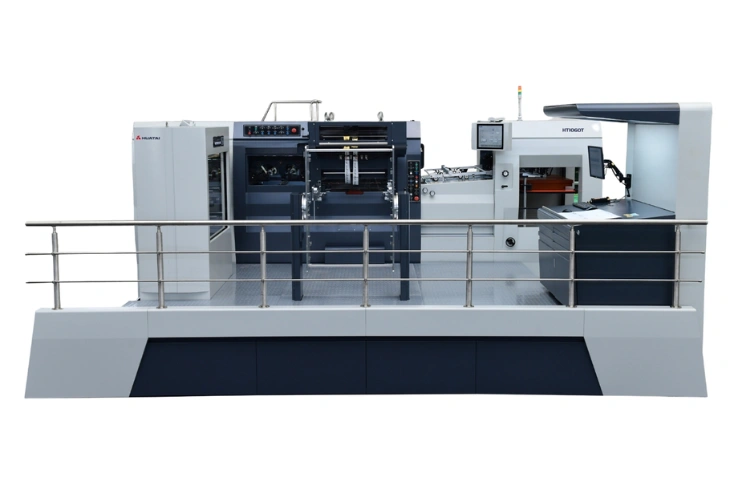

HT1060T Excellent Foil Stamping Machine Manufacturers in Chennai

HT1060T Excellent Foil Stamping Machine in Chennai

We are one of the leading HT1060T Excellent Foil Stamping Machine Manufacturers in Chennai. Used for carton box, hand bag, label foil stamp, die cut, hot and cold emboss.

Equipped with 3 longitudinal and 2 traversal foil shafts

Mitsubishi and Panasonic PLC and 9 sets of Yaskawa servo motor from Japan.

Paper slows down when approachs front layer to ensure stamping accurate.

A blowing foil separation device used for large area foil stamping.

  • Hologram stamping is option
  • Max foil stamping speed 7500s/h
  • Large Area Foil Stamp
  • Detail Foil Stamp
  • Embossing Foil Stamp
Send Inquiry Now

Specification

Max. Paper Size 1060 x 740 mm
Min. Paper Size 400 x 360 mm
Max. Cutting Size 1040 x 730 mm
Max. Foil Stamping Size 1030 x 730 mm
Inside Chase Size 1050 x 740 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 10 mm
Min. Gripper Margin 9 mm
Max. Foil Stamping Speed 7500 s/h
Max. Cutting Speed 7500 s/h
Max. Hologram Speed (Option) 6500 s/h
Max. Pressure 300 T
Die-cutting Precision ±0.075 mm
Heating Zone 16 zones
Foil Stamping and Heating Temperature 0 ~ 190°C
Max. Feeding Pile Height (incl. pallet) 1630 mm
Max. Delivery Pile Height (incl. pallet) 1450 mm
Thickness of Cardboard 80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper ≤ 4 mm
Weight 21 T
Total Power 38 KW
Compressed Air 0.8 MPa
Air Flow 0.6 m³/Min

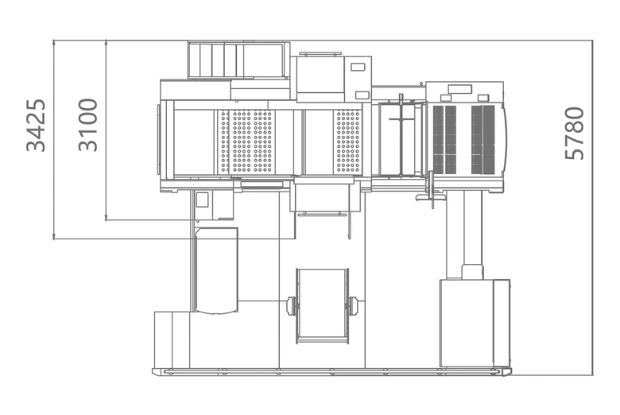

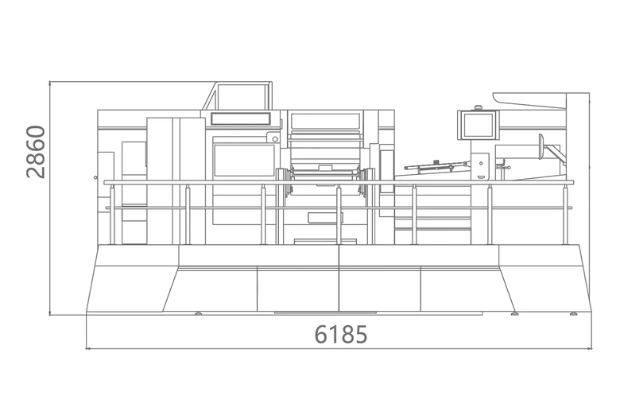

Layout
