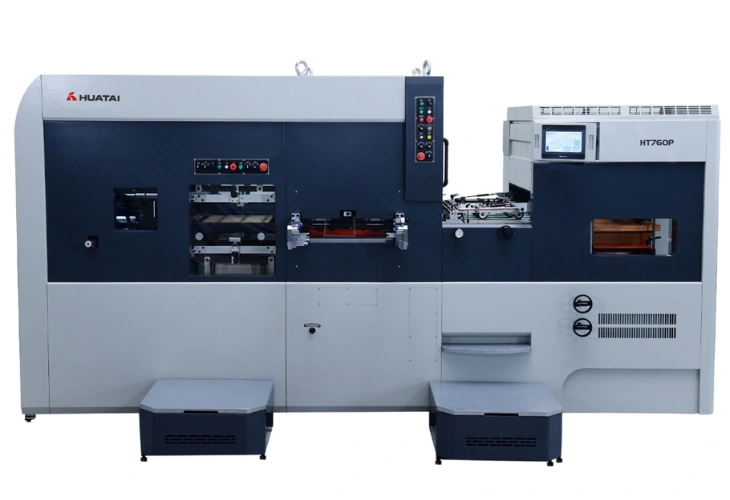

HT760P / HT760PC High Speed Die Cutting Machine With Stripping Manufacturers in Chennai

Looking for the top HT760P /HT760PC High Speed Die Cutting Machine With Stripping in Chennai? Well, we are the foremost HT760P High Speed Die Cutting Machine with Stripping Manufacturers in Chennai, HT760PC High Speed Die Cutting Machine with Stripping Manufacturers in Chennai. Used for hangtags, labek carton box, hand bag die cutting, creasing and cold embossing with stripping unit. Stripping frame can stay in any position and easy to install pins.

Equipped with non stop feeding and non stop delivery device.

Pneumatic lock on die cutting chase and air floating device on die cut plate.

German chains ensure accuracy of gripper bars. Length of gripper chains can be adjusted. Can strip holes more than 3mm in diameter.

  • Smart
  • Strip out holes and edges
  • Wide applicability
  • Match with B2

Specification

Max. Paper Size 760 x 520 mm
Min. Paper Size 320 x 260 mm
Max. Cutting Size 750 x 510 mm
Max. Cutting Speed 9000 s/h
Max. Stripping Speed 9000 s/h
Max. Pressure 250 T / 300 T
Die-cutting Precision ±0.075 mm
Inside Chase Size 765 x 530 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 12 mm
Min. Gripper Margin 7 mm
Max. Feeding Pile Height (incl. pallet) 1280 mm
Max. Delivery Pile Height (incl. pallet) 1160 mm
Thickness of Cardboard 80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper ≤ 4 mm
Weight 9 T / 11 T
Total Power 16 kw
Main Motor Power 7.5 kw
Power Supply 3AC380V / PEN 50HZ N18KVA

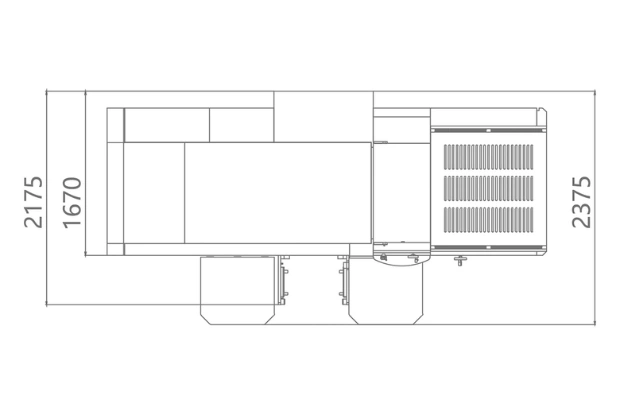

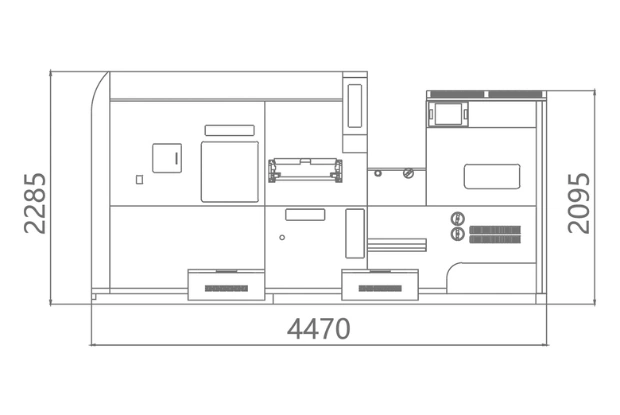

Layout
