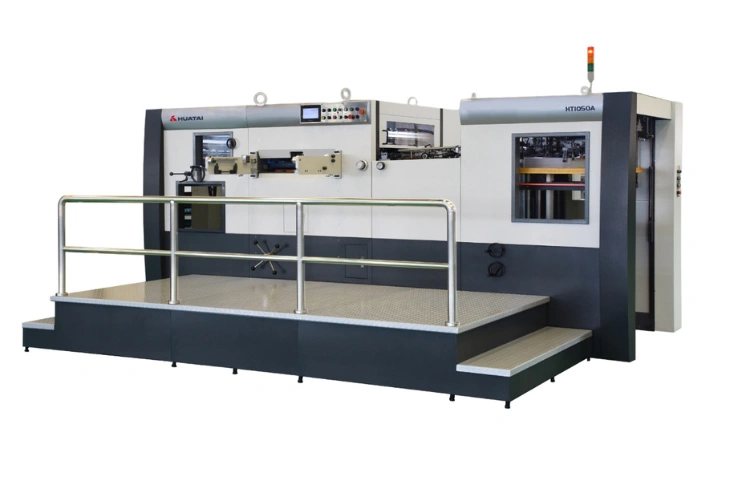

HT1050A / HT1050B/ HT1050G Die Cutting Machine
Manufacturers in Chennai

HT1050A / HT1050B/ HT1050G Die Cutting Machine Manufacturers in Chennai

HT1050A / HT1050B/ HT1050G Die Cutting Machine in Chennai

Are you looking for the best HT1050A /HT1050B/HT1050G Die Cutting Machine Manufacturers in Chennai? We are the leading HT1050A Die Cutting Machine Manufacturers in Chennai, HT1050B Die Cutting Machine Manufacturers in Chennai, HT1050G Die Cutting Machine Manufacturers in Chennai. Used for carton box.hand bag.label die cutting and creasing, cold embossing.

Equipped with non stop feeding and non stop delivery device.

Feeding table is adjustable for aligning paper stack.

Pneumatic lock on die cutting chase and air floating device on die cut plate.

German chains ensure accuracy of gripper bars and length of gripper chains are adjustable.

  • Suitable for thin paper and plastic
  • Heating and anti-static is option
Send Inquiry Now

Specification

Max. Paper Size 1050 x 740 mm
Min. Paper Size 400 x 360 mm
Max. Cutting Size 1040 x 730 mm
Max. Cutting Speed 7500 s/h
Max. Pressure 300 T / 500 T / 300 T
Die-cutting Precision ±0.075 mm
Inside Chase Size 1050 x 740 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 10 mm
Min. Gripper Margin 9 mm
Max. Feeding Pile Height (incl. pallet) 1450 / 1450 / 1750 mm
Max. Delivery Pile Height (incl. pallet) 1300 / 1300 / 1600 mm
Thickness of Cardboard 80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper ≤ 4 mm
Weight 15 T / 16 T / 15.5 T
Total Power 16 w
Dimensions 4620 x 3765 x 2005 / 2005 / 2305
