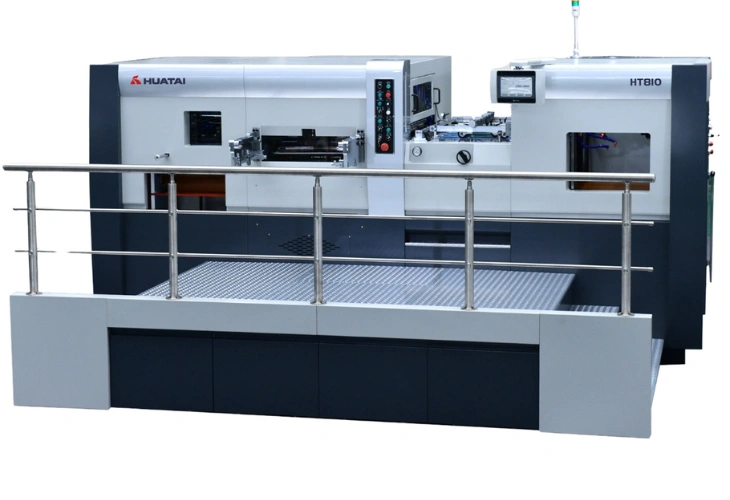

HT810 Excellent Heavy-duty Die Cutting Machine in Chennai

We are the top HT810 Excellent Heavy-duty Die Cutting Machine Manufacturers in Chennai. This is a high-performance equipment with better performance to meet customers’ requirements for higher product quality and production efficiency.

High-speed die-cutting machine developed for B2 format digital and offset printing.

It can process cards, cartons, ticket sets, labels, tags, stickers and other products.

It has the functions of die-cutting, indentation, embossing and braille embossing.

  • Short changeover
  • Highly intelligent
  • Stable and high efficiency

Specification

Max. Paper Size 810 x 610 mm
Min. Paper Size 320 x 260 mm
Max. Cutting Size 800 x 600 mm
Max. Cutting Speed 9000 s/h
Max. Stripping Speed 9000 s/h (-) / 9000 s/h
Max. Pressure 500 T
Die-cutting Precision ±0.075 mm
Inside Chase Size 815 x 620 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 12 mm
Min. Gripper Margin 7 mm
Max. Feeding Pile Height (incl. pallet) 1480 mm
Max. Delivery Pile Height (incl. pallet) 1360 mm
Thickness of Cardboard 80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper ≤ 4 mm
Weight 12 T
Total Power 17 kw

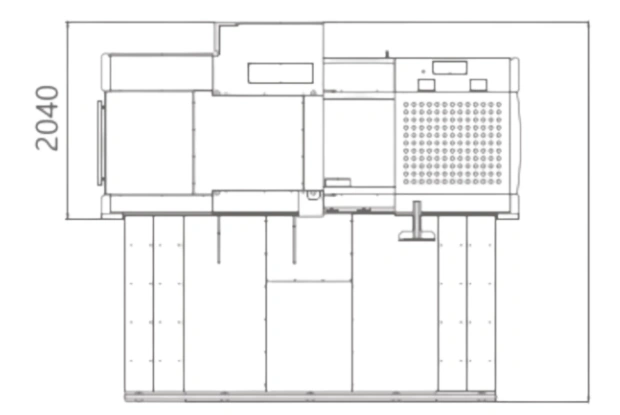

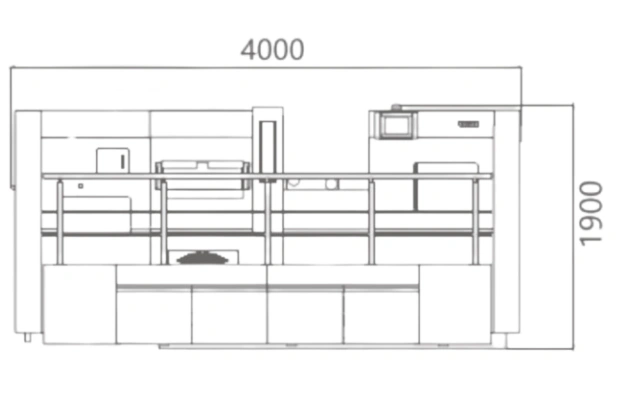

Layout
