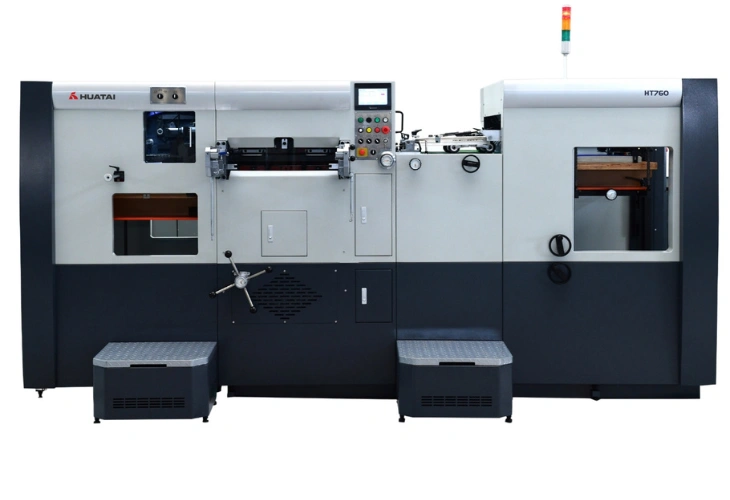

HT760 /HT760B /HT760C High Speed Die Cutting Machine
Manufacturers in Chennai

HT760 /HT760B /HT760C High Speed Die Cutting Machine Manufacturers in Chennai

HT760 /HT760B /HT760C High Speed Die Cutting Machine in Chennai

We are the top HT760 /HT760B /HT760C High Speed Die Cutting Machine Manufacturers in Chennai. Used for hangtags, label, carton box, hand bag die cuttings creasing and cold embossing.

Pneumatic lock on die cutting chase and air floating device on die cut plate.

German chains ensure accuracy of gripper bars.

ength of gripper chains can be adjusted.

  • Smart
  • Simple
  • Wide applicability
  • Match with B2
Send Inquiry Now

Specification

Max. Paper Size 760 x 520 mm
Min. Paper Size 320 x 260 mm
Max. Cutting Size 750 x 510 mm
Max. Cutting Speed 10000 s/h
Max. Pressure 250 T / 270 T / 300 T
Die-cutting Precision ±0.075 mm
Inside Chase Size 765 x 530 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 12 mm
Min. Gripper Margin 7 mm
Max. Feeding Pile Height (incl. pallet) 1280 mm
Max. Delivery Pile Height (incl. pallet) 1160 mm
Thickness of Cardboard 80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper ≤ 4 mm
Weight 8 T / 9 T / 10 T
Total Power 14 kw

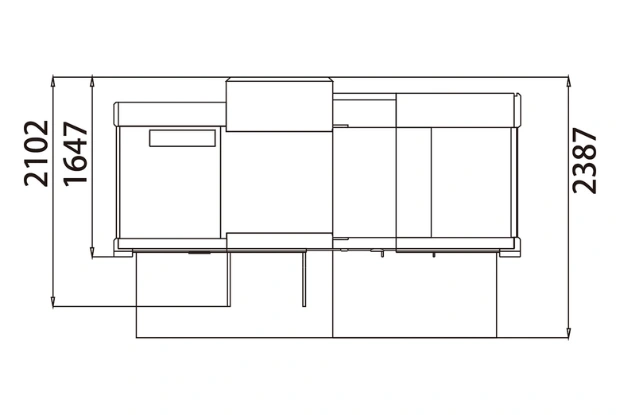

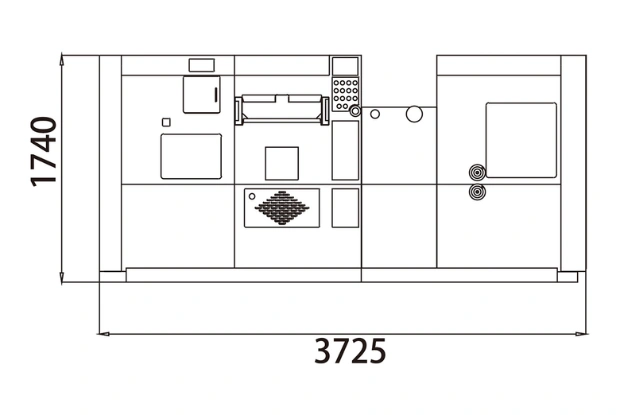

Layout
