HT600 High Speed Die Cutter Manufacturers in Chennai, HT600 High Speed Die Cutting Manufacturers in Chennai

HT600 High Speed Die Cutting Manufacturers in Chennai

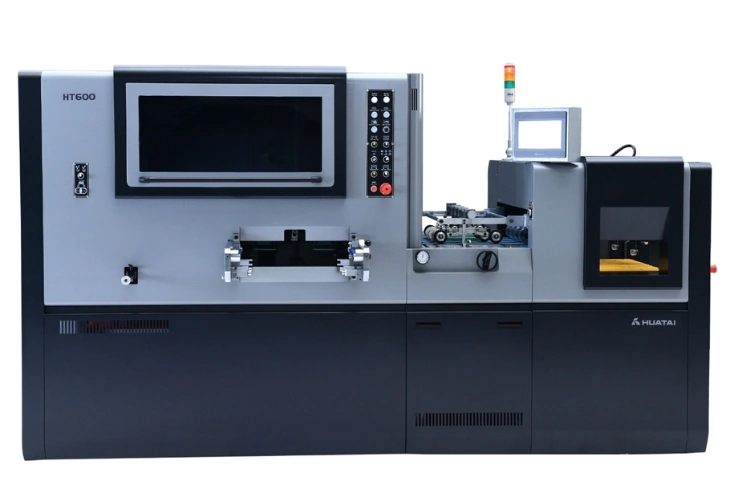

We are one among the leading HT600 High Speed Die Cutter Manufacturers in Chennai. High-speed die-cutting machine developed for B2 format digital and offset printing. It can process cards, cartons, ticket sets, labels, tags, stickers, and other products. It has the functions of die-cutting, indentation, embossing, embossing, braille embossing, bronzing, etc. Efficient, fast, and covers a small area.

Match for: Heidelberg VersafireXerox lGEN Ricoh 7900Heidelberg Speedmaster 52 and Ryobi 520 Kodak Nexpress HP Indigo 7K, 5900, etc

Send Inquiry Now

Specification

Max. Paper Size	600 x 420 mm
Min. Paper Size	280 x 233 mm
Max. Cutting Size	590 x 410 mm
Max. Cutting Speed	10000 s/h / 6000 s/h (vision)
Max. Pressure	180 T
Die-cutting Precision	±0.075 mm
Inside Chase Size	600 x 430 mm
Die Cutting Plate Size	600 x 420 mm
Height of Cutting Rules	23.8 mm
First Cutting Rule	8 ~ 16 mm
Min. Gripper Margin	9 mm
Max. Feeding Pile Height (incl. pallet)	900 mm
Max. Delivery Pile Height (incl. pallet)	800 mm
Thickness of Cardboard	80 g/㎡ ~ 1000 g/㎡
Thickness of Corrugated Paper	≤ 2 mm
Total Power	10 kw / 12 kw (vision)
Weight	5 T / 5.5 T (vision)

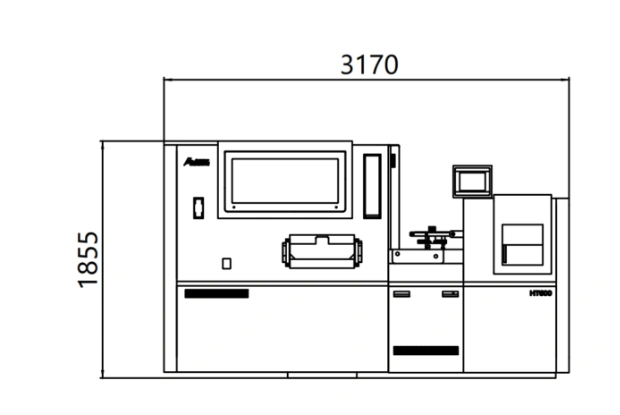

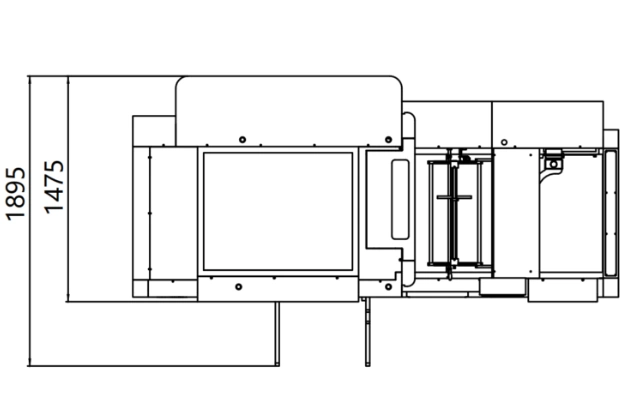

Layout

HT600 High Speed Die Cutting Manufacturers in Chennai
