HT1050P Die Cutting Machine with Stripping
Manufacturers in Chennai

HT1050P Die Cutting Machine with Stripping Manufacturers in Chennai

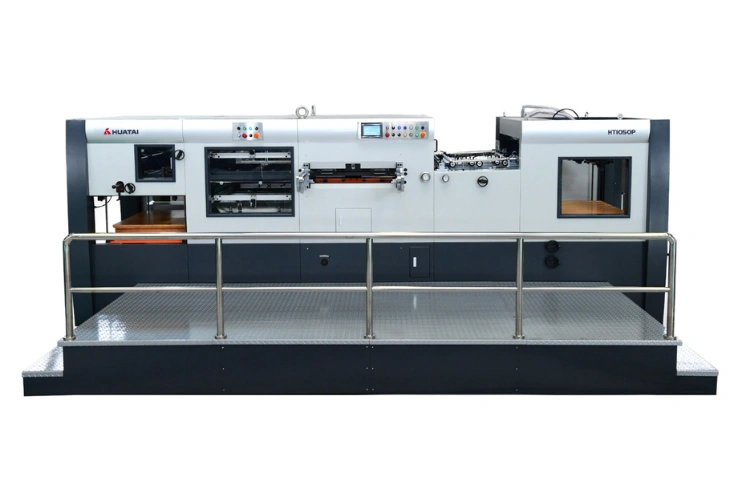

HT1050P Die Cutting Machine with Stripping in Chennai

Best HT1050P Die Cutting Machine with Stripping Manufacturers in Chennai. Used for carton box, hand bag, label die cuttings creasingscold embossing and stripping.

Equipped with feeding and non stop delivery device.

Feeding table is adjustable for aligning paper stack.

Pneumatic lock on die cutting chase and air floating device on die cut plate.

German chains ensure accuracy of gripper bars and length of gripper chains are adjustable.

Smart stripping design leads to quick make readies and job change-over.

Stripping frame can be lifted automatically when not needed.

  • Stable
  • Durable
Send Inquiry Now

Specification

Max. Paper Size 1050 x 740 mm
Min. Paper Size 400 x 360 mm
Max. Cutting Size 1040 x 730 mm
Max. Pressure 300 T
Die-cutting Precision ±0.075 mm
Inside Chase Size 1050 x 740 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 10 mm
Min. Gripper Margin 9 mm
Max. Feeding Pile Height (incl. pallet) 1450 mm
Max. Delivery Pile Height (incl. pallet) 1300 mm
Max. Cutting Speed 8000 s/h
Max. Die-cutting and Stripping Speed 8000 s/h
Thickness of Cardboard 80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper ≤ 4 mm
Total Power 16.9 kw
Weight 17 T
Dimensions 5585 x 3850 x 2005 mm

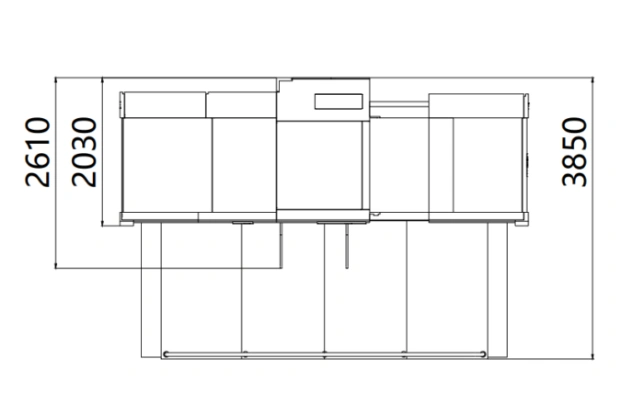

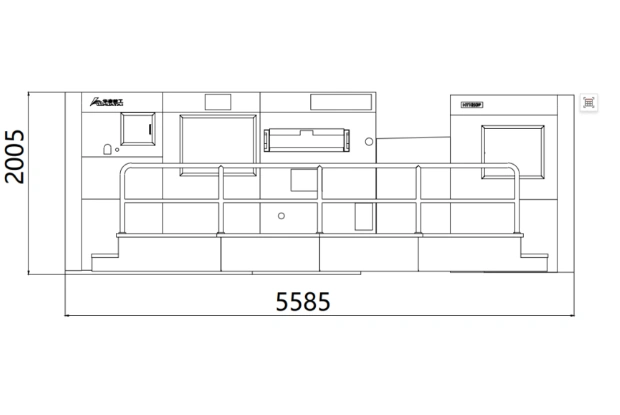

Layout
