Product Description

750T/1050T series automatic angle-cutting line window sticking machine is the most advanced model introduced to the market by the company. It has the function of flat and chamfering, and can be connected to the thickness of 0.08-0.3mm.in

The PVC.PET.PP.OPP film (film) is used for corner cutting, rounding, process holes, environmental protection and other processes. The original cross-cut film is high in sound and quiet.　

Double Line Model:　Smal Paper High Speed Model：Suitableforthehighspeedpaperpatchingforthesmallpaper，thespeedimprovetwotimesthanthecommonmodel.（16000pcs）

The gluing part can realize the automatic opening of the empty sheet, full digital control, the parameters in the operation can be fine-tuned, the detection of each station sensor, the real-time monitoring of the running status, after constant modification Into the design, the machine has high efficiency, high precision, high stability and user-friendly features.

Send Inquiry Now

Technical parameters

Specification FM-750T FM-920T FM-1050T
Paper Size W730*L650mm-150*150mm W900*L650mm-150*150mm W1030*L720mm-150*150mm
Window Dimension W350*L300mm-50*50mm W350*L300mm-50*50mm W450*L350mm-50*50mm
Paper Weight Cardboard: 200~2000g/m² Corrugated board: 1-6mm Cardboard: 200~2000g/m² Corrugated board: 1-6mm Cardboard: 200~2000g/m² Corrugated board: 1-6mm
Film Thickness 0.1~0.3mm 0.1~0.3mm 0.1~0.3mm
Positioning Accuracy Top/bottom ±0.5mm left/right ±0.1mm Top/bottom ±0.5mm left/right ±0.1mm Top/bottom ±0.5mm left/right ±0.1mm
Mechanical Speed Up to 7000 sheet/hour Up to 7000 sheet/hour Up to 7000 sheet/hour
Power Voltage 380V/50HZ (Three phase) 380V/50HZ (Three phase) 380V/50HZ (Three phase)
Machine Power 8.5KW 9.5KW 12KW
Machine Weight 3000KG 3200KG 4000KG
Overall Dimension L6800*W1400*H1600mm L6800*W1570*H1600mm L8000*W1700*H1600mm

Specificationsorsizesmaybechangedwithoutnoticeduetomechanicalequipmentupgrades！

Equipment characteristics

1,Paper Feeding Assembly

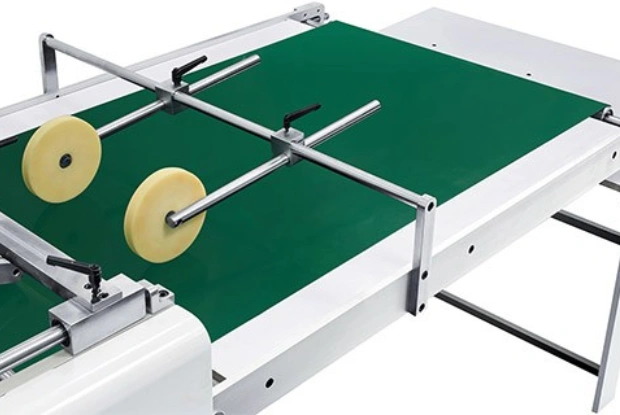

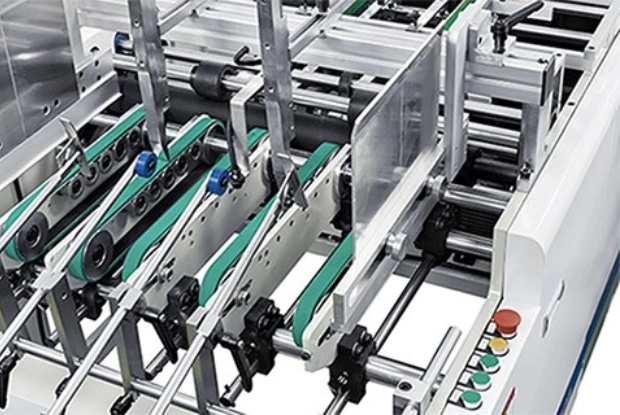

This machine used the Japan imported belt to draw out the paper from the bottom and non stop machine used to continuously add and feed the paper; intermittent belt for paper carrying and feeding has used the servo control, the intermittent paper carrying length can be adjusted on the human machine operation interface according to the length of paper; multiple carrying belts have been equipped with gear and gear rack device which can adjust the position of belt, be more left or more right.

2,Gluing Assembly

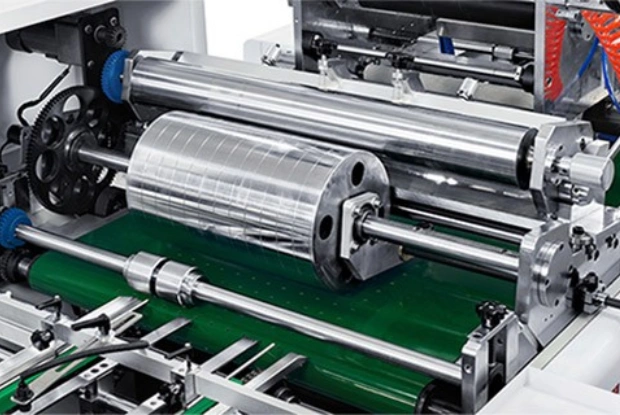

One high-hardness roller circulating glue used, the roller basement adopts center- oriented device to adjust the thickness of glue; with flexo template gluing, the shape can be carved according to the product need. The roller to install the template has a reference line making the template exact, convenient and fast to install. Gluing position can be adjusted more left or more right, the position regulator can adjust it to more front or more behind, the non- stop machine adjusted the position to all directions needed，The rollers can be disengaged to avoid glue on belt in case of on paper, Rubber roller can be towed out ,cleaning and maintenance is more convenient.

3,Filming Assembly

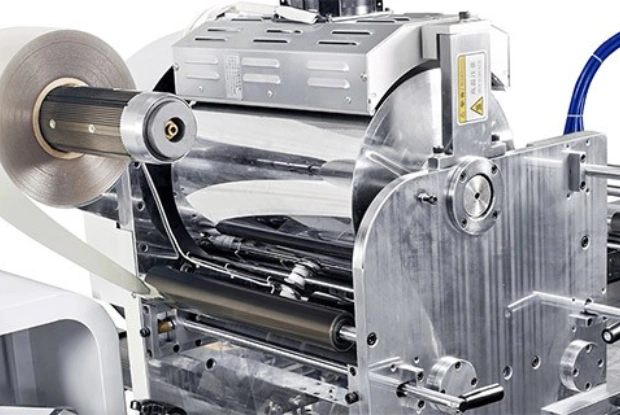

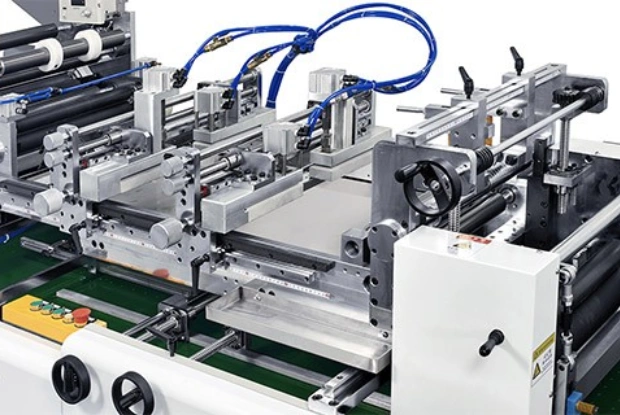

　Independent servo control system is adopted Users can adjust the film　length as per product size without shutdown. The base material can be adjusted horizontally; Meanwhile ,chamfer lines are cut automatically ater the paper is positioned accurately according to the above regulations attach the films to paper box and cut the film via automatically transverse cutter The precision of film attachment is up to ±0 .5mm.

4,Paper Collecting Assembly

Imported soft belt conveying can prevent product crushing, Paper is collected tidily in a sandwiching structure, Independently adjustable speed, selective use according to product, which ensures perfect quality.

5,Appliance parts

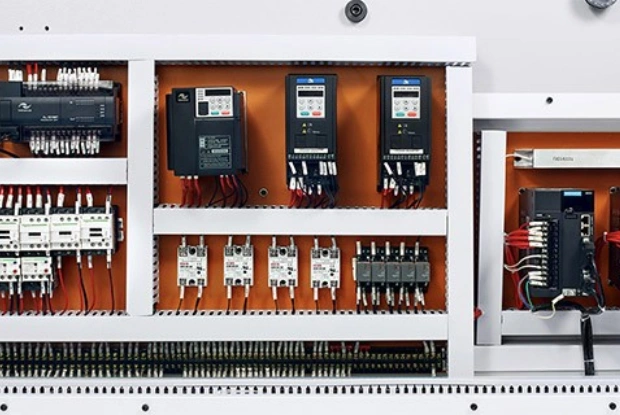

The whole machine adopts PLC program control. All kinds of electronic components and detector switches are made in Germany, Taiwan and Japan etc.

Employ electromagnetic heating system, The heating roller is made of high hardness steel, Mirror chrome plating, At the same time equipped with two sets of film pulling device; Guarantee drawing film speed synchronization, So as to ensure that the film does not wipe flowers. Realize the function of auxiliary flat film.
