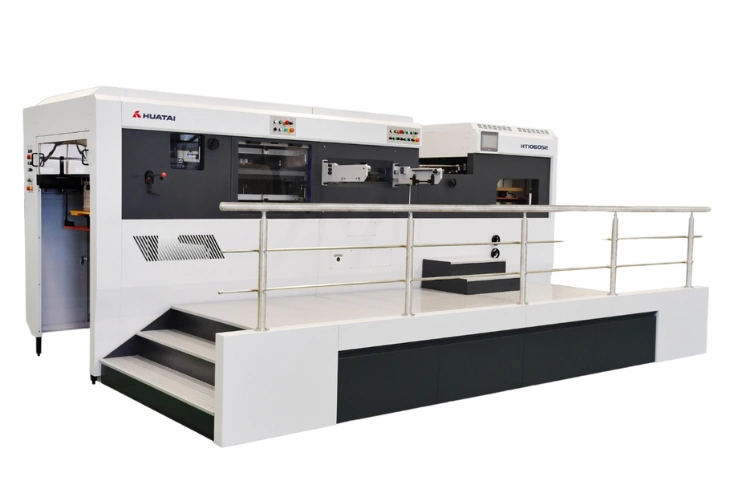

HT1060SE /HT1060E /HT1060S Die Cutting And Stripping Machine in Chennai

We are one among the best HT1060SE /HT1060E /HT1060S Die Cutting And Stripping Machine Manufacturers in Chennai. Mainly used for deep embossing and cold and hot embossing of fine printed products such as carton and color box in the packaging industry, such as cigarette box, wine box, gift box, cosmetics box, food box, puzzle, etc, to make the products more three-dimensional and exquisite. 12 individual heating zones is eciency and energy-ecient. Machine adopts reinforcement design to make it withstand strong pressure.

Central line system in die cutting and stripping unit. Accurate positioning can increase production eciency. The up/down movement of upper stripping frame is controlled by motor.

Stripping frame can be lifted automatically when not needed.

  • Temperature controlled by PLC, save power consumption
  • 550T Pressure
  • Highest speed 8000s/h

Specification

Max. Paper Size 1060 x 740 mm
Min. Paper Size 400 x 360 mm
Max. Cutting Size 1040 x 730 mm
Max. Pressure 550 T / 550 T / 300 T
Die-cutting Precision ±0.075 mm
Inside Chase Size 1050 x 740 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 10 mm
Min. Gripper Margin 9 mm
Heating Zone 12 zones / 12 zones / -
Temperature 0-190°C / 0-190°C / -
Max. Feeding Pile Height (incl. pallet) 1750 mm
Max. Delivery Pile Height (incl. pallet) 1600 mm
Max. Cutting Speed 8000 s/h
Max. Die-cutting and Stripping Speed 8000 s/h / - / 8000 s/h
Thickness of Cardboard 80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper ≤ 4 mm
Total Power 38 kw / 36 kw / 18 kw
Weight 21 T / 18 T / 18 T

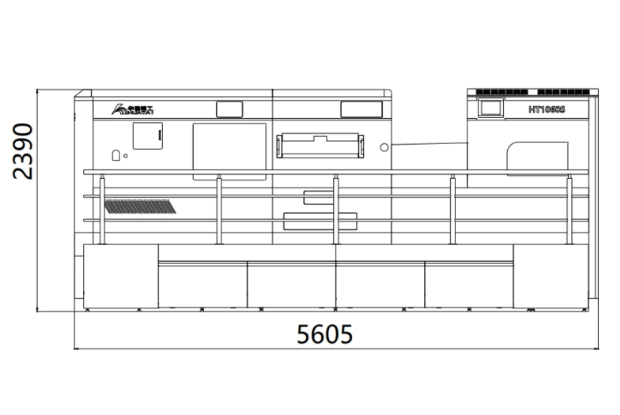

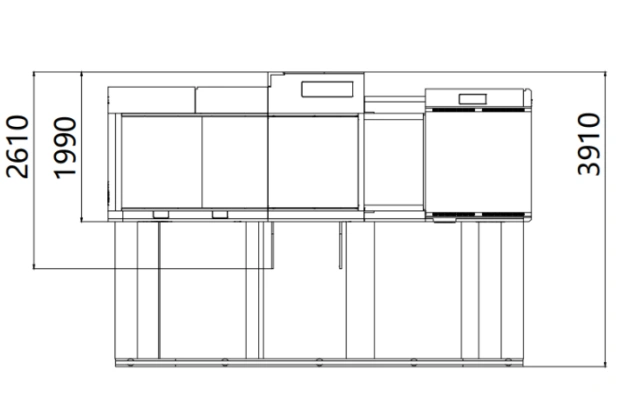

Layout
