HT1060PG Excellent Die Cutting And Stripping Machine Manufacturers in Chennai, HT1060G Excellent Die Cutting Machine Manufacturers in Chennai

HT1060G Excellent Die Cutting And Stripping Machine Manufacturers in Chennai

HT1060PG Excellent Die Cutting And Stripping Machine/HT1060G Excellent Die Cutting Machine Manufacturers in Chennai

We are the top HT1060PG Excellent Die Cutting and Stripping Machine Manufacturers in Chennai. HT1060G Excellent Die Cutting Machine Manufacturers in Chennai. This is a high-performance equipment with better performance to meet customers’

requirements for higher product quality and higher productivity.

Gripper margin removal
Easy to operate and save time
High output
Perfect products quality

Send Inquiry Now

Specification

Max. Paper Size	1060 x 760 mm
Min. Paper Size	400 x 380 mm
Max. Cutting Size	1050 x 750 mm
Max. Pressure	350 T
Die-cutting Precision	±0.075 mm
Inside Chase Size	1070 x 760 mm
Die Cutting Plate Size	1065 x 760 mm
Height of Cutting Rules	23.8 mm
First Cutting Rule	8~16 mm
Min. Gripper Margin	9 mm
Max. Feeding Pile Height (incl. pallet)	1750 mm
Max. Delivery Pile Height (incl. pallet)	1600 mm
Max. Cutting Speed	9000 s/h
Max. Die-cutting and Stripping Speed	8500 s/h
Thickness of Cardboard	80 g/㎡ ~ 2000 g/㎡
Thickness of Corrugated Paper	≤ 4 mm
Total Power	20 kw / 17 kw
Weight	20 T / 18 T

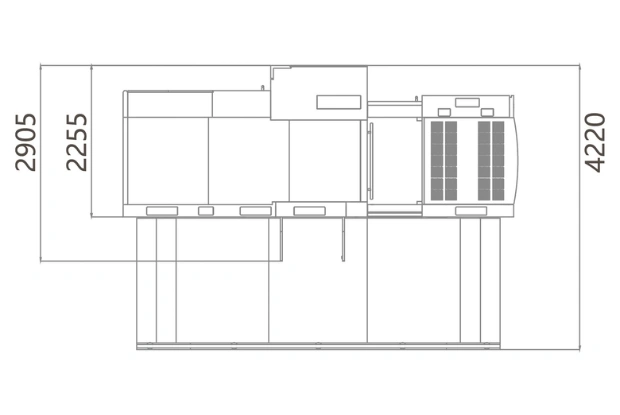

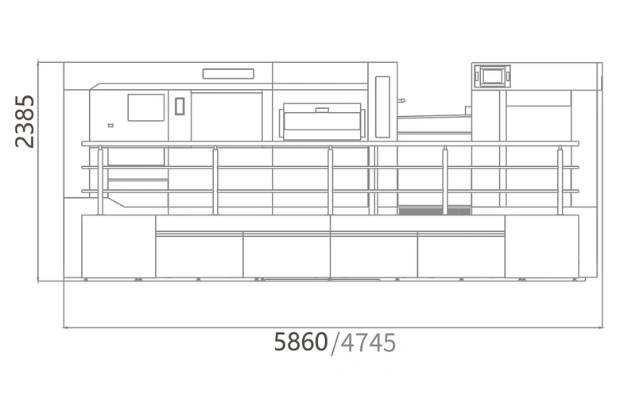

Layout
