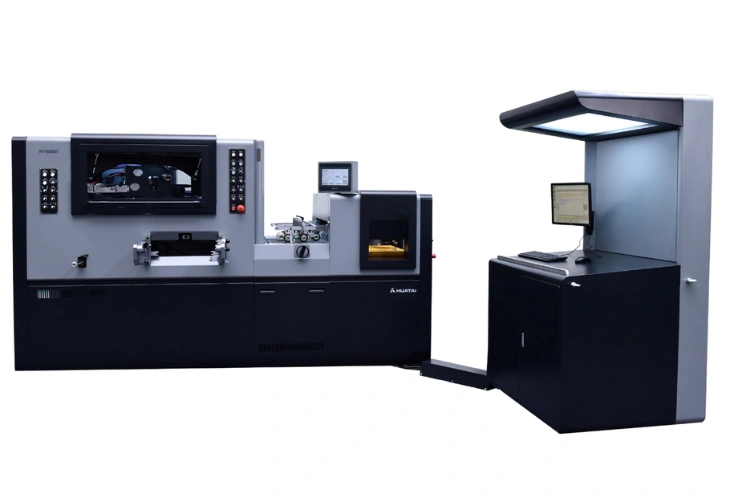

HT600T High Speed Foil Stamping Machine in Chennai

Looking for the best HT600T High Speed Foil Stamping Machine in Chennai? We are the top HT600T High Speed Foil Stamping Machine Manufacturers in Chennai. Professional die cutting and foil stamping machine with the world’s highest die cutting and foil stamping speed. Stable functions and easy and convenient operability will help you improve production efficiency and quality.

Match for: Heidelberg VersafireXerox lGEN Ricoh 7900Heidelberg Speedmaster 52 and Ryobi 520 Kodak Nexpress HP Indigo 7K, 5900, etc

Intelligent register vision system(Invention Patent) is option

Specification

Max. Paper Size 600 x 420 mm
Min. Paper Size 280 x 233 mm
Max. Cutting Size 590 x 410 mm
Max. Cutting Speed 10000 s/h
Max. Foil Stamping Speed - / 9000 / - / 9000 s/h
Max. Cutting Speed with Vision System - / - / 6000 / 6000 s/h
Max. Pressure 180 T
Die-cutting Precision ±0.075 mm
Inside Chase Size 600 x 430 mm
Die Cutting Plate Size 600 x 420 mm
Height of Cutting Rules 23.8 mm
First Cutting Rule 8 ~ 16 mm
Min. Gripper Margin 9 mm
Max. Feeding Pile Height (incl. pallet) 900 mm
Max. Delivery Pile Height (incl. pallet) 800 mm
Thickness of Cardboard 80 g/㎡ ~ 1000 g/㎡
Thickness of Corrugated Paper 0 ≤ 2 mm
Total Power 27 KW / 29 KW (vision)
Weight 5 T / 7.5 T (vision)

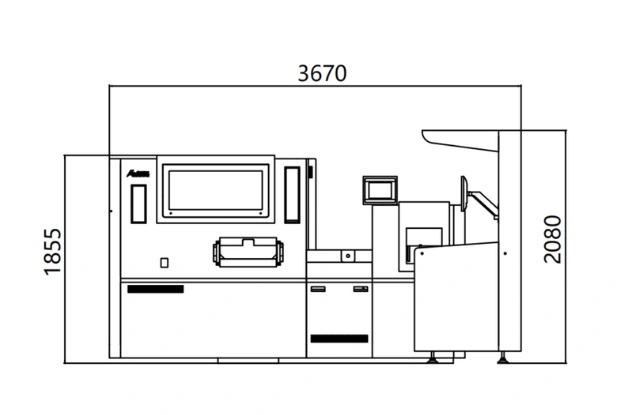

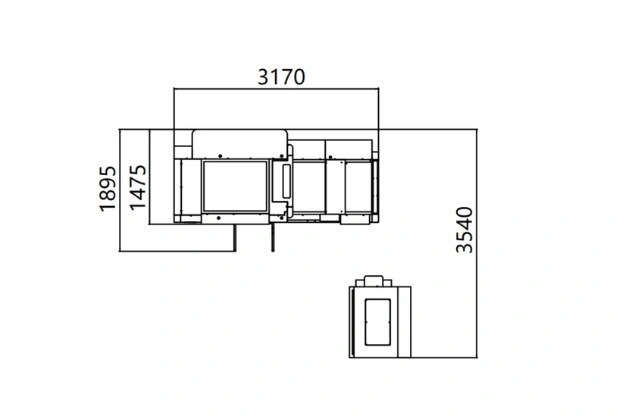

Layout
