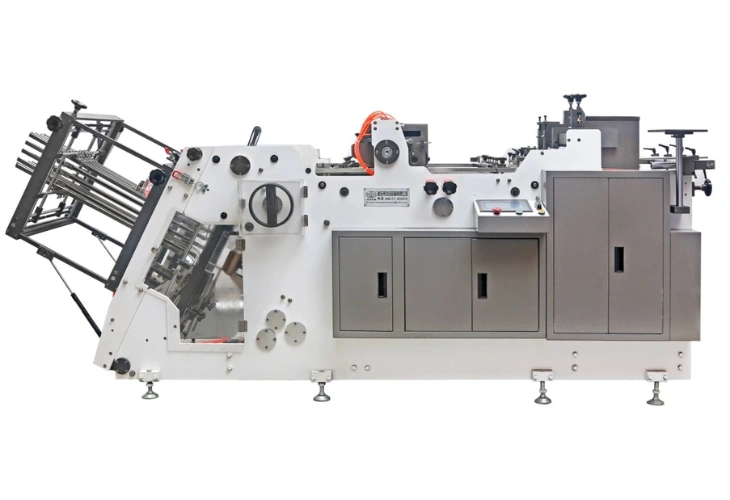

Automatic Paper Carton Erecting Forming Machine

ZF-800 paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation

ZF-800 paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation

QUOTATION

No. Goods Description Quantity Unit Price (USD)
1 ZF-800 carton erecting machine (servo motor feeding system) 1 USD
2 Extra mold 1 USD

Technical Specifications

Type ZF-800
Production Capacity 50-180 pcs/min
Suitable Material 200-600gsm card paper, PE coated paper, kraft paper, corrugated paper
Paper Open Length L100-450mm, Degree: 5°-40°
Paper Open Width B100-600mm
Height H15-200mm
Total Power 5KW
Weight 1.7T
Dimension 3600 x 1400 x 1700 mm
Power Source 380V 50HZ
