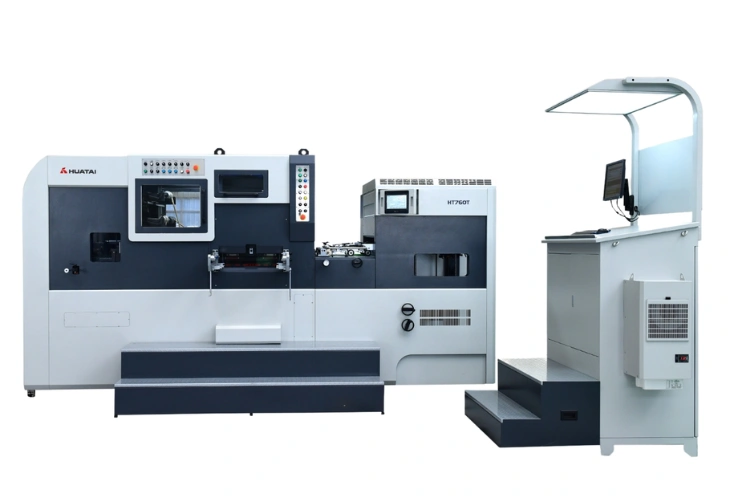

One of the best HT760T High Speed Die Cutting And Foil Stamping Machine Manufacturers in Chennai. For Hang tag, trademark, carton box, handbag and other fine printing product foil stamp, die cut, crease, hot and cold emboss.
| Max. Paper Size | 760 x 520 mm |
| Min. Paper Size | 320 x 260 mm |
| Max. Cutting Size | 750 x 510 mm |
| Max. Foil Stamping Size | 740 x 500 mm |
| Max. Cutting Speed | 9000 s/h |
| Max. Foil Stamping Speed | 9000 s/h |
| Max. Hologram Speed (Option) | 7500 s/h |
| Max. Pressure | 250 T |
| Die-cutting Precision | ±0.075 mm |
| Inside Chase Size | 765 x 530 mm |
| Height of Cutting Rules | 23.8 mm |
| First Cutting Rule | 12 mm |
| Min. Gripper Margin | 7 mm |
| Heating Zone | 8 zones |
| Heating Temperature | 0 ~ 190°C |
| Max. Feeding Pile Height (incl. pallet) | 1280 mm |
| Max. Delivery Pile Height (incl. pallet) | 1160 mm |
| Thickness of Cardboard | 80 g/㎡ ~ 2000 g/㎡ |
| Thickness of Corrugated Paper | ≤ 4 mm |
| Feeding Shafts | 3/6 |
| Weight | 11 T |
| Total Power | 38 KW |
