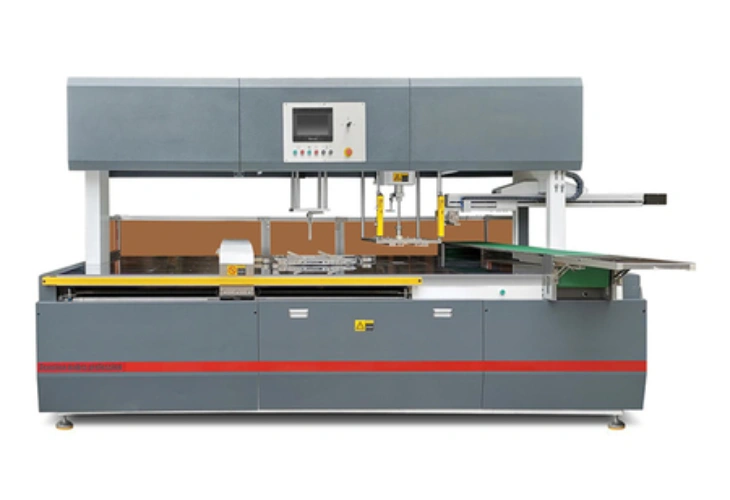

HTQF-1080CTR Automatic blanking machine

Model: HTQF-1080CTR

The product is a preferable choice for stripping process after die cutting, such as tags, labels, paper cups, medicine packages, wine packages, cosmetic packages and so on. It saves labor, improve the product quality, and increase the production efficiency.

Advantage and improvement
  • Compraring to traditional stripping machine which uses gantry frame as the base for installing the stripping mould, our new design adopts one-side independent standing base for installing the stripping mould; this design is space saving, and convinient for operating.
  • Hidden type servo motor and ball screw ensures a precise pile positioning.
  • Adjustable hydraulic system provides adjustable pressure for processing of different 3.materials of different sizes and weights.
  • Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
  • Stripping needles (rods) are quick and easy to chang to fit differnent products fromats and patterns.
  • Automatci lubricating system carries out regular lubrication, which greatlty extend the service life of the machine.
  • The operation panel adopts visual button to avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
  • Safety fence at operation side protects the safety of personnel when the machine is running.

Electric configuration

Item Model Brand Brand Origin
DC Power Supply NES-100-24 Schneider French
Relay RXM2AB2BD(DC240V) Schneider French
AC Contactor LC1-0910 Schneider French
Thermal Overload Relay 3UA59(6.3-10A) Schneider French
Button XB2BA11C Schneider French
4-Position Switch XD2PA24CR Schneider French
Knob XB2BD2C Schneider French
Proximity Switch XS212BLNBL2C Schneider French
Servo Motor F-H08AF2 Evta China
Thermal Overload Relay 3UA5240-1K Siemens Germany
Leakage Protection Airswitch (General Power Supply) BKN-D16-3 GL South Korea
Leakage Protection Airswitch (Independent Power Supply) BKN-D6-1 GL South Korea
Touch Screen 10.4'' Weinview Taiwan
Micro-Computerized Controller SYSMAC CP1E OMRON Japan

Machine technical parametrs

Item Model Brand Brand Origin
DC Power Supply NES-100-24 Schneider French
Relay RXM2AB2BD(DC240V) Schneider French
AC Contactor LC1-0910 Schneider French
Thermal Overload Relay 3UA59(6.3-10A) Schneider French
Button XB2BA11C Schneider French
4-Position Switch XD2PA24CR Schneider French
Knob XB2BD2C Schneider French
Proximity Switch XS212BLNBL2C Schneider French
Servo Motor F-H08AF2 Evta China
Thermal Overload Relay 3UA5240-1K Siemens Germany
Leakage Protection Airswitch (General Power Supply) BKN-D16-3 GL South Korea
Leakage Protection Airswitch (Independent Power Supply) BKN-D6-1 GL South Korea
Touch Screen 10.4'' Weinview Taiwan
Micro-Computerized Controller SYSMAC CP1E OMRON Japan

Machine technical parametrs

Specification Value
Model HTQF-1080C (Double worktable)
Machine Floor Size (mm) 3790×1930×2018
Maximum Stacking Size (x) × (y) (mm) 1050×720
Maximum Stacking Height (mm) 100
Minimum Stacking Height (mm) 40
Minimum Stacking Size (x) × (y) (mm) 500×400
Work Table Height (mm) 850
Maximum Sampling (mm) 440×440
Minimum Sampling (mm) 50×50
Fastest Pick-up (times / min) 15-22
Max. Force (bar) 70
Air Consumption (L/min) 3
Maximum Power 4.85kw/n 380v
Net Weight 3T
Package Size (mm) 3900×2050×2150
Gross Weight 3.2T

Machine technical parametrs

Specification Value
Model HTQF-1080CTR (Double worktable)
Machine Floor Size (mm) 4290×2490×2018
Maximum Stacking Size (x) × (y) (mm) 1050×720
Maximum Stacking Height (mm) 100
Minimum Stacking Height (mm) 40
Minimum Stacking Size (x) × (y) (mm) 500×400
Work Table Height (mm) 850
Maximum Sampling (mm) 440×440
Minimum Sampling (mm) 50×50
Fastest Pick-up (times / min) 15-22
Max. Force (bar) 70
Air Consumption (L/min) 4
Maximum Power 6kw/n 380v
Net Weight 3.2T
Package Size (mm) 3900×1950×2200
Gross Weight 3.4T

Tool cabinet

Part Name Quantity
Tape Measure 1
Push Head 1
Slotted Screwdriver 1
Cross Screwdriver 1
Screws and Nuts Many
Sponges Many
Adjustable Wrench 1
Thimble Mould A Set
Pressure Plate 14
Inner Hexagon Spanner A Set
Open End Wrench 1
