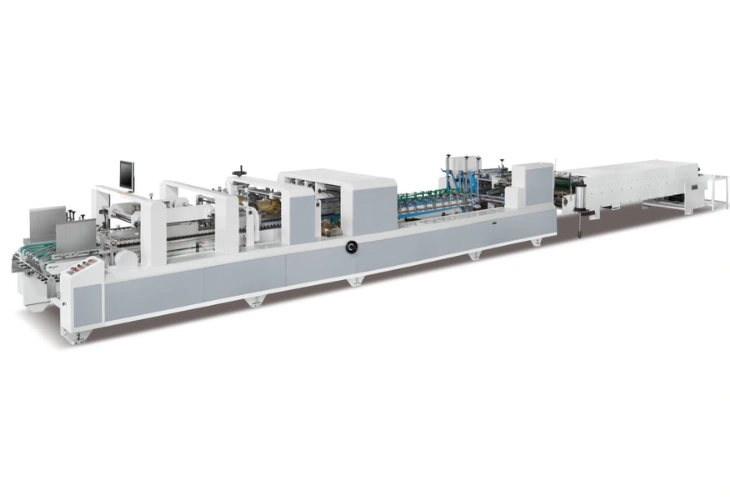

ZH-AC Series Automatic Folder Gluer Machine in Chennai

We are the prominent ZH-AC Series Automatic Folder Gluer Machine Manufacturers in Chennai. ZH-AS Series Automatic Folder Gluer 1. INTRODUCTION : ZH-MC Series Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board, can do two fold. This model has corectiondevice and bottom lock device. Can make electrical adjusting. Has UV destroying devic

1. INTRODUCTION:

ZH-AC Series Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board, can do two fold..This model has corectiondevice.Can select bottom lock device.Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.

Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.

2.CHARACTERS:
  • Driving by synchronous belt,ensure smooth and accurate running.
  • Inverter driving,stable and power saving.
  • Use electric adjust,easy operate.
  • Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
  • Automatic counting and kicking,quantity can preset.
  • Conveyer pressure adjustable according to the box to ensure best quality.

Straight Line Box

ZH-M1050-S ZH-M1250-S ZH-M1450-S ZH-M1650-S ZH-M1850-S
A MAX 1100 1300 1500 1700 1900
MIN 180 180 300 300 300
B MAX 1100 1100 1200 1200 1200
MIN 70 70 80 100 100
C MAX 400 450 500 500 500
MIN 15 15 20 30 30

double sides box

ZH-A580-C ZH-A780-C ZH-A1050-C ZH-A1250-C ZH-A1450-C
A MAX 580 720 1050 1250 1450
MIN 100 100 200 200 200
B MAX 600 700 900 900 1000
MIN 70 70 120 120 120
C MAX 150 180 200 200 200
MIN 10 10 20 30 30

crash-lock bottom box

ZH-A580-C ZH-A780-C ZH-A1050-C ZH-A1250-C ZH-A1450-C
A MAX 580 720 1050 1250 1450
MIN 150 130 180 180 300
B MAX 600 800 70 70 80
MIN 80 60 1100 1100 1200
C MAX 130 180 250 300 350
MIN 20 25 30 30 50

4.Samples:

5. Main technical parameter:

Model ZH-A580-C ZH-A780-C ZH-A1050-C ZH-A1250-C ZH-A1450-C
Suitable material Card board 210gsm-850gsm,E/F flute corrugated board Card board 210-850gsm,E/F flute corrugated board Card board 210-850gsm,N/E/F/B flute corrugated board Card board 210-850gsm,E/C/B/AB flute corrugated board Card board 210-850gsm,E/C/B/AB flute corrugated board
Max method Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding
Max mechanical speed 350m/min 350m/min 350m/min 350m/min 350m/min
Overall dimension 11500*1500*1400mm 11500*1500*1400mm 13500*2300*1700mm 15000*2350*1650mm 16800*2350*1900mm
Weight 4.5T 5.5T 8.5T 9.5T 10.5T
Power consumption 9KW,380V,50HZ 9KW,380V,50HZ 16KW,380V,50HZ 16KW,380V,50HZ 18KW,380V,50HZ

6.Machine configuration

Component Brand/Model
Main Motor TECO Taiwan
PLC Siemens
Inverter Siemens
Touch Screen Siemens
Ribbed Belt Wutong
Bearing NSK
Wall Thickness 20mm Tempered
Feeding Belt NITTA
Plain Belt NITTA Japan
Circuit Breaker Schneider
Relay Schneider
Button Schneider
Switch Power Supply Schneider
Photo Switch Panasonic
