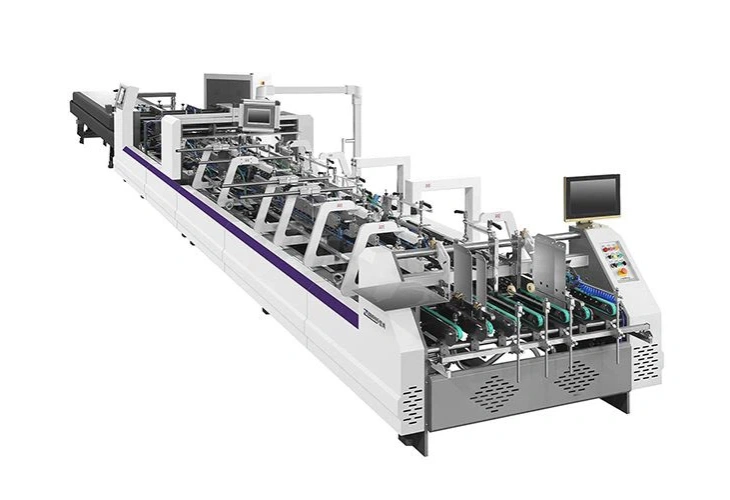

ZH-BH 4/6 Corner Automatic Folder Gluer Machine in Chennai

Top ZH-BH 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai. ZH-B 4/6 Corner Automatic Folder Gluer 1. INTRODUCTION: ZH-BH 4/6 Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and

1. INTRODUCTION:

ZH-BH 4/6 Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.

Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.

2.CHARACTERS:
  • Driving by synchronous belt,ensure smooth and accurate running.
  • Inverter driving,stable and power saving.
  • Use electric adjust,easy operate.
  • Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
  • Automatic counting and kicking,quantity can preset.
  • Conveyer pressure adjustable according to the box to ensure best quality.

Straight Line Box

Model ZH-B850-4/6 ZH-B1100-4/6
A Max 850 1100
MIN 80 100
b Max 1000 1200
MIN 60 60
c Max 200 300
MIN 8 8

double sides box

Model ZH-B850-4/6 ZH-B1100-4/6
A Max 850 1100
MIN 100 100
B Max 800 800
MIN 70 70
C Max 200 300
MIN 10 10

crash-lock bottom box

Model ZH-B850-4/6 ZH-B1100-4/6
A Max 800 1100
MIN 180 150
B Max 800 1000
MIN 40 60
C Max 200 300
MIN 25 30

4-corner box

Model ZH-B850-4/6 ZH-B1100-4/6
A Max 770 950
MIN 140 180
B Max 550 800
MIN 60 80
C Max 120 150
MIN 20 25

6-corner box

Model ZH-B850-4/6 ZH-B1100-4/6
A Max 770 950
MIN 200 300
B Max 500 800
MIN 80 80
C Max 120 150
MIN 20 25

4.Gluing system

Specification Details
Input Voltage AC 220V (±20%) 50-60Hz
Power 480W
Glue-like Precision ±1mm
Gel-point 4 types
Model HBS
Guns 3
Max Viscosity of Adhesives 3000mPas
Each Two-way Transport Efficiency 6:1
Gas Source Input Requirements 2-8 bar
Weight 25kg
Size 1280 x 480 x 600mm

5.Plasma Surface Treatment

Specification Details
Model CLEAN-PL-5020
Input Voltage AC 220V
Nominal Power 1500W
Plasma Power Supply Frequency 20-30 kHz
Air Supply Pressure 60 L/m³
Dimension 720 x 970 x 1270 mm
Outlet Angle < 20 mm
Guns 2
Weight 25 kg

6.Samples:

7. Main technical parameter:

Model ZH-BH850-4/6 Corner ZH-BH1100-4/6 Corner
Suitable Material Card board 210-800gsm, E/F/N flute corrugated board Card board 210-800gsm, E/F/N flute corrugated board
Max Method Automatic continuous feeding Automatic continuous feeding
Max Mechanical Speed 400m/min 400m/min
Overall Dimension 15500*1400*1800mm 16800*1700*1900mm
Weight 8T 8.8T
Power Consumption 23KW, 380V, 50HZ 27KW, 380V, 50HZ
Compressed Air 6 bar, 10 m³/h, 60 L 6 bar, 10 m³/h, 60 L
Inching Speed 10 m/min 10 m/min
Glue Type Cold glue Cold glue

8.Machine configuration

Component Brand/Details
Main Motor Siemens
PLC LS - South Korea
Three Inverter System LS - South Korea
Two Touch Screens LS - South Korea
Feeder Belt NITTA Japan
Drive Bearing NSK Japan
Ribbed Belt Hutchinson (France)
Plain Belt NITTA Japan
Circuit Breaker Schneider
Relay Schneider
Button Schneider
Switch Power Supply Schneider
Photo Switch Panasonic
One Servo Motor (Control Feeder) VMMORE CHINA (Software from Germany)
Glue Spray KQ CHINA
Double Side Wall Double side 20mm
Folding Section Fold section up, belt control by shaft, running E/F/N flute more easily
