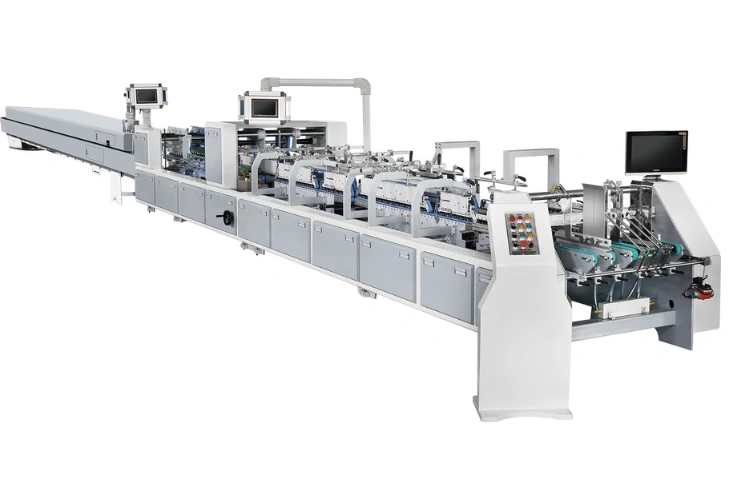

ZH-H PC Corner Folder Gluer Machine in Chennai

One of the best ZH-H PC Corner Folder Gluer Machine Manufacturers in Chennai. ZH-H PC Corner Folder Gluer 1. INTRODUCTION: ZH-H PC Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and dust

1. INTRODUCTION:

ZH-H PC Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.

Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.

2.CHARACTERS:
  • Driving by synchronous belt,ensure smooth and accurate running.
  • Inverter driving,stable and power saving.
  • Use electric adjust,easy operate.
  • Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
  • Automatic counting and kicking,quantity can preset.
  • Conveyer pressure adjustable according to the box to ensure best quality.

Straight Line Box

ZH-H850-PC ZH-H1100-PC
A MAX 850 1100
MIN 120 180
B MAX 1000 1100
MIN 60 70
C MAX 200 400
MIN 8 5

double sides box

ZH-H850-PC ZH-H1100-PC
A MAX 850 1100
MIN 100 200
B MAX 700 900
MIN 70 120
C MAX 200 200
MIN 10 20

crash-lock bottom box

ZH-H850-PC ZH-H1100-PC ZH-M1450-C ZH-M1650-C ZH-M1850-C
A MAX 800 1000
MAX 180 180
B MIN 800 1100
MAX 60 70
C MIN 200 250
MIN 25 30

4.Samples:

5. Main technical parameter:

Specification ZH-B850-PC ZH-B1100-PC
Suitable Material Card board 210gsm-850gsm, E flute corrugated board Card board 210gsm-850gsm, E flute corrugated board
Max Method Automatic Continuous Feeding Automatic Continuous Feeding
Max Mechanical Speed 450m/min 450m/min
Overall Dimension 15500*1400*1800mm 15500*1700*1800mm
Weight 7T 8T
Power Consumption 18KW, 380V, 50HZ 19KW, 380V, 50HZ

6.Machine configuration

Component Brand/Specification
Main Motor Siemens
PLC Siemens
Inverter VEICHI
Touch Screen VEICHI
Feeder Belt NITTA Japan
Ribbed Belt NSK Japan
Bearing 20mm Tempered
Plain Belt NITTA Japan
Low Voltage Apparatus Schneider
