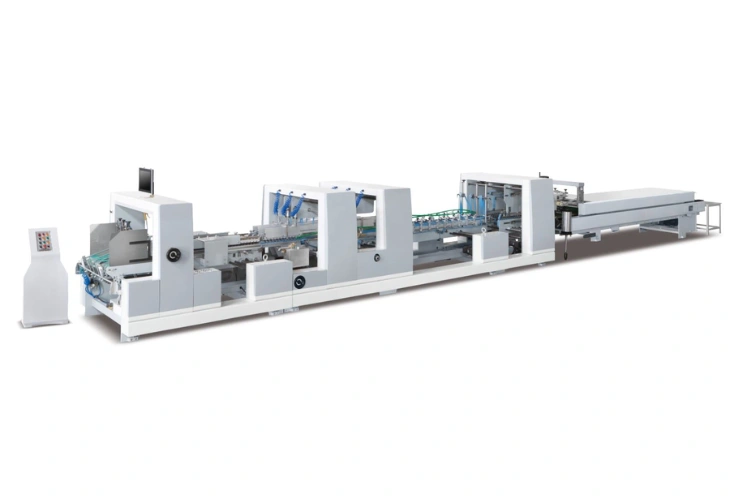

ZH-M 4/6 Corner Automatic Folder Gluer Machine
Manufacturers in Chennai

ZH-M 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai

ZH-M 4/6 Corner Automatic Folder Gluer Machine in Chennai

Best ZH-M 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai. ZH-AC Series Automatic Folder Gluer 1. INTRODUCTION : ZH-M 4/6 Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board, can do two fold. This model has corectiondevice and bottom lock device. Can make electrical adjusting. Has UV destroying.

1. INTRODUCTION:

ZH-MC Series Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice and bottom lock device.Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.

Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.

Send Inquiry Now
2.CHARACTERS:
  • Driving by synchronous belt,ensure smooth and accurate running.
  • Inverter driving,stable and power saving.
  • Use electric adjust,easy operate.
  • Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
  • Automatic counting and kicking,quantity can preset.
  • Conveyer pressure adjustable according to the box to ensure best quality.
ZH-M 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai
ZH-M 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai
ZH-M 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai
ZH-M 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai
ZH-M 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai

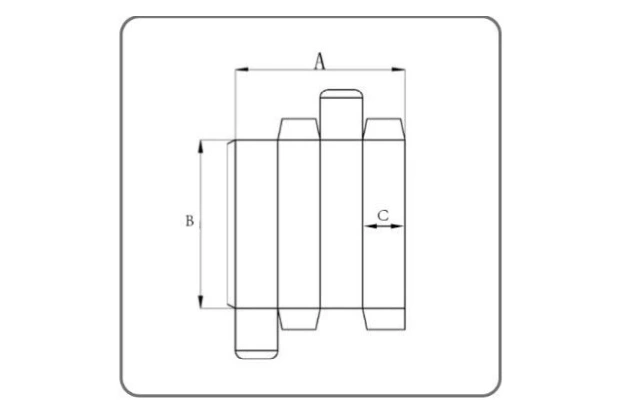

Straight Line Box

ZH-M1050-4/6 ZH-M1250-4/6 ZH-M1450-4/6 ZH-M1650-4/6 ZH-M1850-4/6
A MAX 1100 1300 1500 1700 1900
MIN 180 180 300 300 300
B MAX 1100 1100 1200 1200 1200
MIN 70 70 80 100 100
C MAX 400 450 500 500 500
MIN 15 15 20 30 30

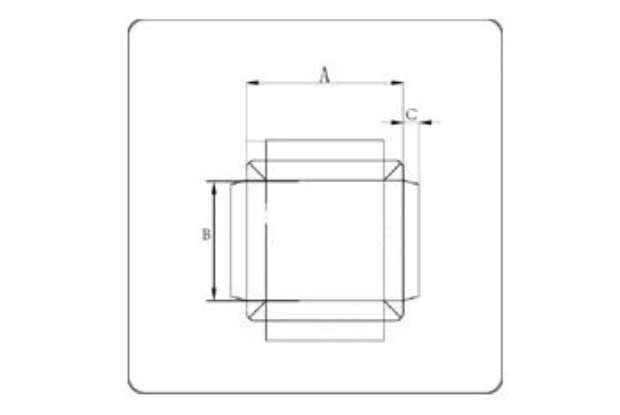

double sides box

ZH-M1050-4/6 ZH-M1250-4/6 ZH-M1450-4/6 ZH-M1650-4/6 ZH-M1850-4/6
A MAX 1050 1250 1450 1650 1850
MIN 200 200 300 300 300
B MAX 900 900 1000 1200 1200
MIN 120 120 120 150 120
C MAX 200 200 200 250 270
MIN 20 20 20 20 20

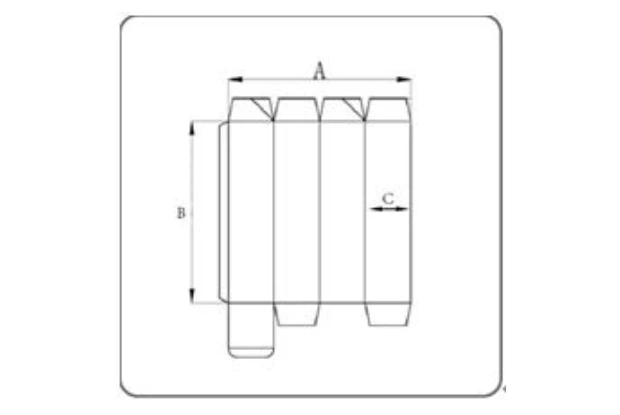

crash-lock bottom box

ZH-M1050-4/6 ZH-M1250-4/6 ZH-M1450-4/6 ZH-M1650-4/6 ZH-M1850-4/6
A MAX 1000 1200 1400 1600 1800
MIN 180 180 300 300 350
B MAX 70 1100 80 1200 1200
MIN 1100 70 1200 100 100
C MAX 250 300 350 400 450
MIN 30 30 50 50 50

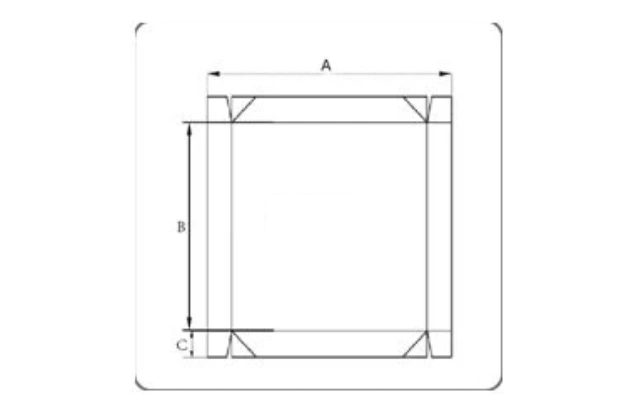

4-corner box

ZH-M1050-4/6 ZH-M1250-4/6 ZH-M1450-4/6 ZH-M1650-4/6 ZH-M1850-4/6
A MAX 950 1150 1300 1500 1700
MIN 180 180 240 300 300
B MAX 800 800 1000 1000 1000
MIN 80 80 80 100 100
C MAX 150 150 150 150 150
MIN 25 25 30 35 40

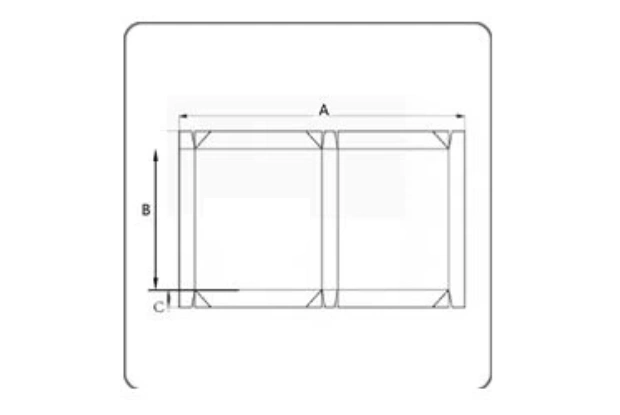

6-corner box

ZH-M1050-4/6 ZH-M1250-4/6 ZH-M1450-4/6 ZH-M1650-4/6 ZH-M1850-4/6
A MAX 950 1150 1400 1500 1700
MIN 300 300 400 500 500
B MAX 800 800 1000 1000 1000
MIN 80 110 150 150 150
C MAX 150 150 150 150 150
MIN 25 25 30 35 40

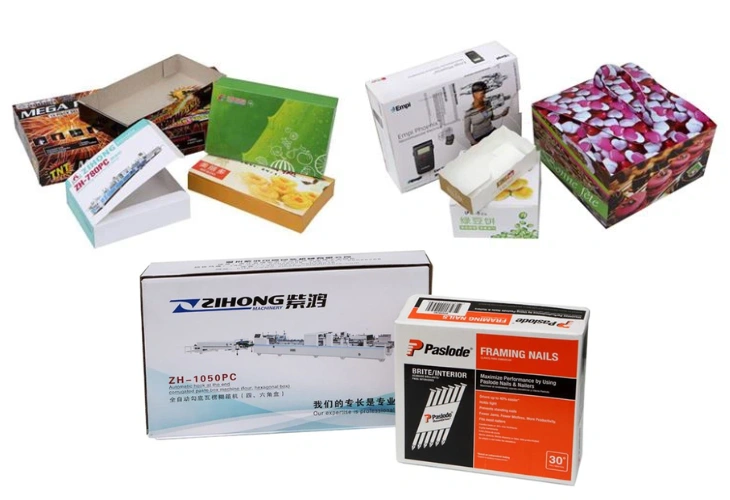

4.Samples:

ZH-M 4/6 Corner Automatic Folder Gluer Machine Manufacturers in Chennai

5. Main technical parameter:

Model ZH-M1050-4/6 Corner ZH-M1250-4/6 Corner ZH-M1450-4/6 Corner ZH-M1650-4/6 Corner ZH-M1850-4/6 Corner
Suitable Material Cardboard 210-850gsm, N/E/F/B flute corrugated board Cardboard 210-850gsm, E/C/B/AB flute corrugated board Cardboard 210-850gsm, E/C/B/AB flute corrugated board Cardboard 210-850gsm, E/C/B/AB flute corrugated board Cardboard 210-850gsm, E/C/B/AB flute corrugated board
Max Method Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding
Max Mechanical Speed 350m/min 350m/min 350m/min 350m/min 350m/min
Overall Dimension 19000*1900*1650mm 19000*2100*1650mm 19600*2300*1650mm 19600*2500*1650mm 19600*2700*1650mm
Weight 11T 12T 13T 14T 15T
Power Consumption 20KW, 380V, 50HZ 20KW, 380V, 50HZ 27.2KW, 380V, 50HZ 27.2KW, 380V, 50HZ 27.2KW, 380V, 50HZ

6.Machine configuration

Component Brand
Main Motor GPG Taiwan
PLC Siemens
Inverter Siemens
Touch Screen Siemens
Timing Belt and Pulley Optibelt German
Bearing NSK
Main Axis Taiwan Chrome Plated Steel Bar
Wall Thickness 20mm Tempered
Plain Belt NITTA Japan
Overall Dimension Schneider
Low Voltage Apparatus Level 12.9 Taiwan
Fasten Bolts AIR TAC Taiwan
Air Cylinder Schneider
