ZH-MS Series Automatic Folder Gluer Machine Manufacturers in Chennai

ZH-MS Series Automatic Folder Gluer Machine Manufacturers in Chennai

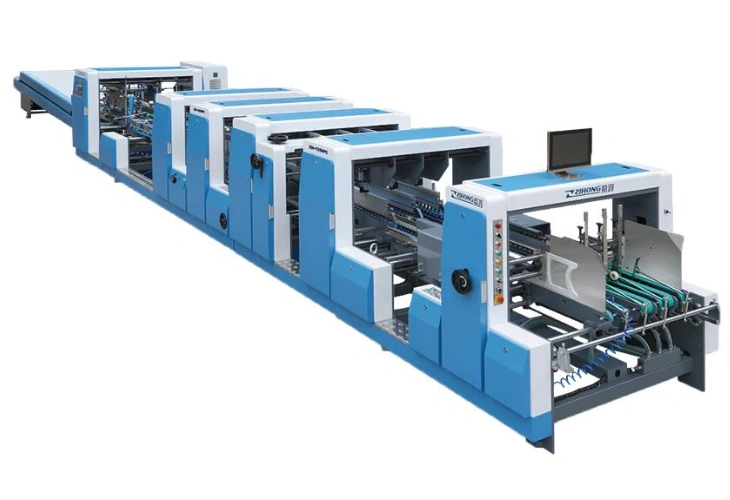

ZH-MS Series Automatic Folder Gluer Machine in Chennai

We are the leading ZH-MS Series Automatic Folder Gluer Machine Manufacturers in Chennai. ZH-MS Series Automatic Folder Gluer 1. INTRODUCTION : ZH-MC Series Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board, can do two fold. This model has corectiondevice and bottom lock device. Can make electrical adjusting. Has UV destroying device...

1. INTRODUCTION:

ZH-MS Series Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device. Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.

Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.

Send Inquiry Now
2.CHARACTERS:
  • Driving by synchronous belt,ensure smooth and accurate running.
  • Inverter driving,stable and power saving.
  • Use electric adjust,easy operate.
  • Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
  • Automatic counting and kicking,quantity can preset.
  • Conveyer pressure adjustable according to the box to ensure best quality.
ZH-MS Series Automatic Folder Gluer Machine Manufacturers in Chennai

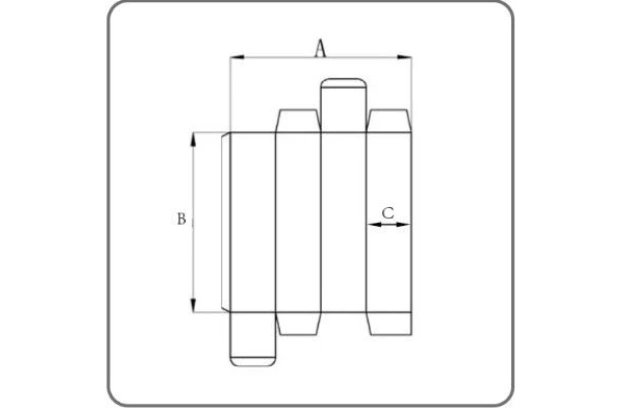

Straight Line Box

ZH-M1050-S ZH-M1250-S ZH-M1450-S ZH-M1650-S ZH-M1850-S
A MAX 1100 1300 1500 1700 1900
MIN 180 180 300 300 300
B MAX 1100 1100 1200 1200 1200
MIN 70 70 80 100 100
C MAX 400 450 500 500 500
MIN 15 15 20 30 30

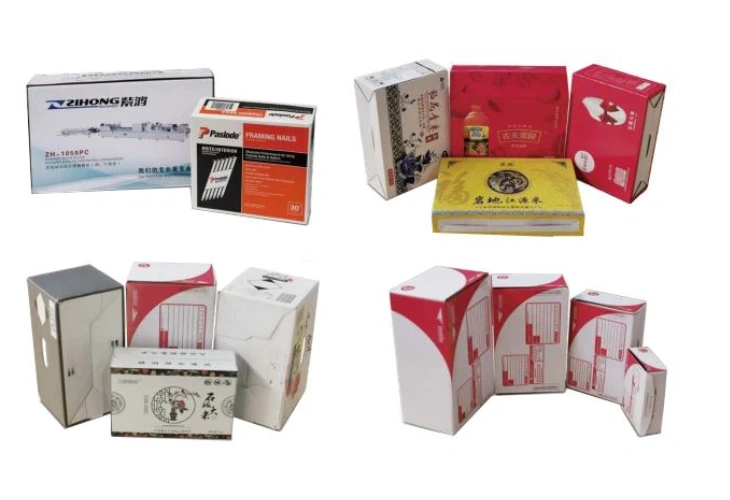

4.Samples:

ZH-MS Series Automatic Folder Gluer Machine Manufacturers in Chennai

5. Main technical parameter:

Model ZH-M1250-S ZH-M1250-S ZH-M1450-S ZH-M1650-S ZH-M1850-S
Suitable material Card board 210gsm-850gsm, E/F flute corrugated board Card board 210-850gsm,E/F flute corrugated board Card board 210-850gsm,N/E/F/B flute corrugated board Card board 210-850gsm,E/C/B/AB flute corrugated board Card board 210-850gsm,E/C/B/AB flute corrugated board
Max method Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding Automatic continuous feeding
Max mechanical speed 350m/min 350m/min 350m/min 350m/min 350m/min
Overall dimension 15000*1900*1650mm 15000*1900*1650mm 15600*2300*1650mm 15600*2500*1650mm 15600*2700*1650mm
Weight 8.5T 9.5T 10.5T 11.5T 11.5T
Power consumption 14KW,380V,50HZ 14KW,380V,50HZ 19.2KW,380V,50HZ 19.2KW,380V,50HZ 19.2KW,380V,50HZ

6.Machine configuration

Component Brand/Model
Main Motor GPG Taiwan
PLC Siemens
Inverter Siemens
Touch Screen Siemens
Timing Belt and Pulley Optibelt (German)
Bearing NSK
Main Axis Taiwan Chrome Plated Steel Bar
Wall Thickness 20mm Tempered
Plain Belt NITTA (Japan)
Overall Dimension Schneider
Low Voltage Apparatus Level 12.9 (Taiwan)
Fasten Bolts AIR TAC (Taiwan)
Air Cylinder Schneider
