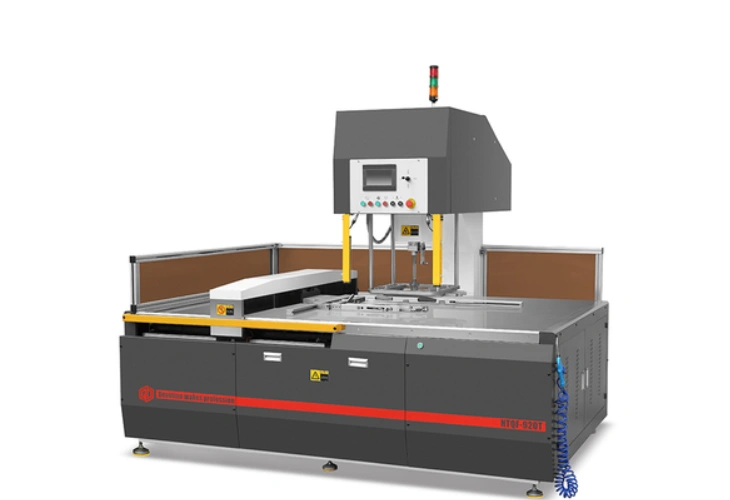

HTQF-920 Automatic blanking machine

HTQF-920 Automatic blanking machine

The product is a preferable choice for stripping process after die cutting, such as tags, labels, paper cups, medicine packages, wine packages, cosmetic packages and so on. It saves labor, improve the product quality, and increase the production efficiency.

Send Inquiry Now
Advantage and improvement
  • Compraring to traditional stripping machine which uses gantry frame as the base for installing the stripping mould, our new design adopts one-side independent standing base for installing the stripping mould; this design is space saving, and convinient for operating.
  • Hidden type servo motor and ball screw ensures a precise pile positioning.
  • Adjustable hydraulic system provides adjustable pressure for processing of different materials of different sizes and weights.
  • Stripping needles (rods) are quick and easy to chang to fit differnent products fromats and patterns.
  • Automatci lubricating system carries out regular lubrication, which greatlty extend the service life of the machine.
  • The operation panel adopts visual button to avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
  • Safety fence at operation side protects the safety of personnel when the machine is running.

Electric configuration

Item Model Brand Brand Origin
DC Power Supply NES-100-24 Schneider French
Relay RXM2AB2BD(DC240V) Schneider French
AC Contactor LC1-0910 Schneider French
Thermal Overload Relay 3UA59(6.3-10A) Schneider French
Button XB2BA11C Schneider French
4-Position Switch XD2PA24CR Schneider French
Knob XB2BD2C Schneider French
Proximity Switch XS212BLNBL2C Schneider French
Servo Motor F-H08AF2 Evta China
Thermal Overload Relay 3UA5240-1K Siemens Germany
Leakage Protection Airswitch (General Power Supply) BKN-D16-3 GL South Korea
Leakage Protection Airswitch (Independent Power Supply) BKN-D6-1 GL South Korea
Touch Screen 10.4'' Weinview Taiwan
Micro-Computerized Controller AFPXHC40-F Panasonic Japan

Machine technical parametrs

Model HTQF-920
Max Sheet Size (X) mm 920
Max Sheet Size (Z) mm 680
Min Sheet Size (X) mm 550
Min Sheet Size (Z) mm 400
Max Pile Height (mm) 100
Min Pile Height (mm) 40
Work Table Height (mm) 850
Max Product Size to be Punched Out 420 x 420
Min Product Size to be Punched Out 30 x 30
Stripping Speed (times/min) 15-22
Max Force (bar) 70

Machine installation data

Model HTQF-920 HTQF-920R
Machine Width (mm) 2540 3170
Machine Depth (mm) 1742 2302
Machine Height (mm) 1930 1930
Net Weight (kg) 1600 1750
Air Source (Bar) 4-7 4-7
Air Consumption (L/min) 2 4
Power Supply Voltage 360V-420V, 50/60Hz 360V-420V,50/60HZ
Power Consumption (A) 4.2 4.6
Insurance Current (A) 10 10
Input Power 3hPE 3hPE

Tool cabinet

Item Quantity
Tape Measure 1
Push Head 1
Slotted Screwdriver 1
Cross Screwdriver 1
Screws and Nuts Many
Sponges Many
Adjustable Wrench 1
Thimble Mould A set
Pressure Plate 14
Inner Hexagon Spanner A set
Open End Wrench 1
